Fiber Spdif optical audio Matrix

Fiber Spdif optical audio Matrix Features:

• Supports Dolby Digital & DTS 5.1, Dolby Digital Plus; Support PCM Stereo 32kHz, 44.1kHz, 48kHz and 96kHz; New & Play
• 4x2 Digital Optical TOSLINK / SPDIF Audio Matrix switch or split 4 way Optical SPDIF / TOSLink audio to 2 way  Optical / SPDIF / TOSLink Audio. The two outputs share the same input or be from two different inputs.
• Audio format support: LPCM2.0/DTS/Dolby-AC3
• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
• This audio selector switch can be selected through remote control or button on the switch
• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine, if the light for standby indication flashed, it shows that the output voltage from the power adapter is too high and the adapter needs to be changed
• No loss of quality
• Installs in minutes
• Need DC5V / 500mA power supply

Introduction:

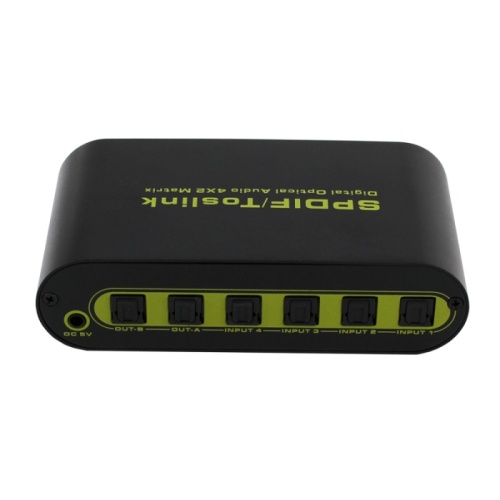

This SPDIF/TosLink Digital Optical Audio 4x2 Matrix could put four sets of SPDIF output signal source and two SPDIF input device connected. It can be easily split or switched between four SPDIF signal and two SPDIF signal receiving equipment.

SPECIFICATIONS:
Support audio format ...................................................... LPCM 2.0 / Dolby-AC3
Peak wavelength...................................................................................650nm
Max baud rate.....................................................................................16Mbps
Output cable distance.........≤40m (Use the optical fiber cable loss less the o.2Db/m)
Max working current .............................................................................100mA
Power adapter format........Input: AC(50Hz, 60Hz) 100V-240V; Output: DC5V/500mA
Operating Temperature range..........................................................(0 to +40℃)
Operating Humidity range......................................5 to 90%RH(No Condensation)
Dimension (L x W x H)....................................................128 x 93.5 x 33.5(mm)
Weight..................................................................................................185g

Certification: CE FCC RoHS

Package Content:

1. TOSLINK/SPDIF Digital Optical Audio 4x2 Matrix

2. 5V Power Adaptor
3. Operation Manual
4. Remote control
