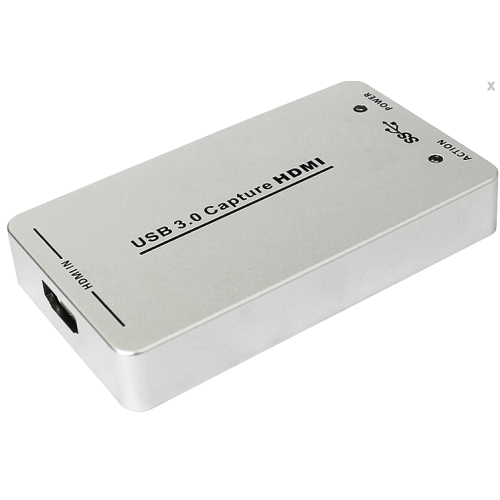

HDMI to USB 3.0 Capture

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 15 Days

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000
Payment Type:	T/T,Paypal,Money Gram,Western Union
Certificate:	CE.FCC.RoHS.HDMI.HDMI
Port:	Shenzhen,Guangzhou

Product Description

HDMI to USB 3.0 Capture

Share your meeting, live streaming ,play games to youtube, facebook and twitter --

Sharing your happiness is much better than enjoying your happiness by your own!

HDMI to USB 3.0 Capture Features:

1. The input and output video signal can reach 1080p/60 Hz.

2. It is compatible with UVC video capture and YUV 422 video output.
3. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
4. It doesn`t need to install a driver, and it is truly PnP.
5. It is compatible with Windows, Linux, OS X operating systems.

Advanced Features:
1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The process of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. It supports the image adjustment features, like brightness, contrast, hue and saturation.

6. The firmware can be updated.

Model	HY-900
Host Interface	USB3.0, 300-350MB/s throughput (USB2.0, 40MB/s throughput)
Input Interface	1 HDMI interface

HDMI Input Formats

It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)

Input Formats

Resolutions: 640x360/640x480/720x480/

720x576/768x576/800x600/856x480/960x540/

1024x576/1024x768/1280x720/1280x800/

1280x960/1280x1024/1368x768/1440x900/

1600x1200/1680x1050/1920x1080/1920x1200/

Frame Rate: 25/29.97/30/50/59.94/60 fps

Output Formats

Resolutions:

USB3.0:

640x480/720x480/720x576/768x576/

800x600/856x480/960x540/1024x576/

1024x768/1280x720/1280x800/1280x960/

1280x1024/1368x768/1440x900/1600x1200/

1680x1050/1920x1080/1920x1200

Frame Rate: 60 fps

USB2.0:

640x360/640x480/720x480/720x576/

768x576/800x600/856x480/960x540

Frame Rate: 30 fps

1024x576

Frame Rate: 25 fps

Video Sampling Rate

HDMI: 165MHz

Audio and Video Capture

It meets the standards of UVC (USB video class) and UAC (USB audio class)

Output Color Space

YUY2, RGB24

The Support of OS

(x86 and x64 versions):

Windows 7

Windows 8

Windows 10

Windows Server 2008 R2

Linux (Kernel version 2.6.38 and above)

OS X (10.8 and above)

Android

Software Compatibility

Adobe Flash Media Live Encoder (Windows, OS X)

Real Producer Plus (Windows)

QuickTime Broadcaster (OS X)

QuickTime Player (OS X)

Windows Media Encoder (Windows)

Daum Potplayer (Windows, OS X)

XSplit Broadcaster (Windows, OS X)

VLC (Windows, OS X, Linux)

Wirecast (Windows, OS X) etc.

OBS etc.
