China Remote Auto Key Switch 5 x 1

                                HY-SW40503-A-S China Remote Auto Key Switch 5 x 1

 HY-SW40503-A-S China Remote Auto Key Switch 5 x 1 Features:

• Switch HDMI  5 port Input to HDMI 1 port output (HDMI/MHL 1 port supports MHL), with optical Toslink /SPDIF digital audio and 3.5mm headphone audio output
• Supports Ultra HD 4Kx2K/30Hz
• Supports Full HD, 1080P, 3D, HDCP pass-through
• Supports 12-bit Deep Color per channel, maximum 36-bit all channels
• Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximum total TMDS throughput is 9.95Gbps
• Supports uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD, and Dolby True HD
• Supports HDMI pass-through
• Supports up to 7.1CH digital surround on HDMI output
• Supports up to 5.1CH digital surround on Toslink output
• Supports up to 2.0 channel analog stereo on Stereo output
• Supports Standard Audio, DSD Audio, and HD(HBR) Audio
• Supports ARC(Audio Return Channel)

 HY-SW40503-A-S China Remote Auto Key Switch 5 x 1 Introduction:

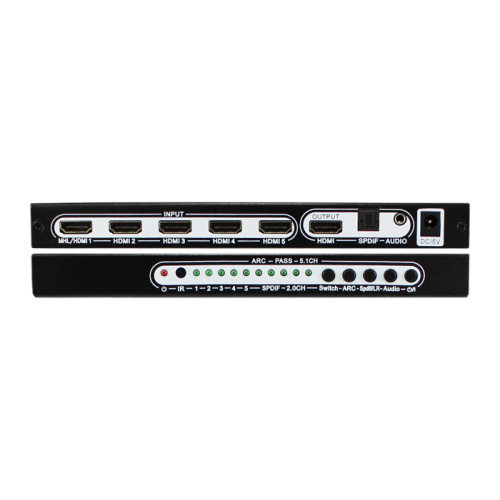

HY-SW40503-A-S HDMI Switch & Audio Extractor 5 x1 converter switch allows you to extract and convert digital signal from HDMI input to 5.1 channel digital surround on Toslink SPDIF optical output or 2.0 channel analog stereo on L/R 2 RCA output. It has a source select button on the switch and a remote control to provide flexibility for you to manually switch between 5 sources. It offers multiple features which include 4K Ultra HD, 3D, Full HD, and ARC support. It works with HDTV, Blu-ray players, PlayStation, Xbox, Amazon Fire TV and Stick, Apple TV, Chrome cast, Roku, smartphones and tablets with MHL or Slim Port capability, and other HDMI capable devices.

 HY-SW40503-A-S China Remote Auto Key Switch 5 x 1  Specifications

HDMI resolution ..................................................................... Ultra HD 4K 2K max; 3D 1080p/24 max
Support video color format ...................................................36-bit Deep Color all channels maximum
Audio output .................... HDMI pass-through; Up to 7.1 CH; output up to 5.1 ch; 3.5 mm stereo output audio
Max bandwidth per channel ........................................................... 300MHz
Max baud rate per display ............................................................. 9.95Gbps
Input/Output TMDS signal ........................................................... 0.5~1.5V p-p(TTL)
Input/Output DDC signal ............................................................. 5V p-p(TTL)
Input cable distance ........... ≤50ft/15 m 24 AWG HDMI high speed Cable at 1080P/24 bit 60 Hz
Output cable distance ......... ≤50ft/15 m 24 AWG HDMI high speed Cable at 1080P/24 bit 60 Hz
Operating Temperature range .............................................5°F to 131°F / -15°C to 55°C
Operating Humidity range ................................................ 5% to 90% RH(No Condensation)
Dimension(LxWxH) ....................................................................... 201x95x20 (mm)
Weight ..............................................................................................478 g
Max working current ..................................................................... 1 A
External Power Supply ............................... Input:AC(50/60Hz) 100V-240V; Output: DC5V/1A

Certification: CE FCC RoHS

 HY-SW40503-A-S China Remote Auto Key Switch 5 x 1  Package Content:

5x1 HDMI Switch with Audio Output x1

Power Adapter x 1
Remote Control x 1
MHL Cable x 1
User Manual x 1
3.5 mm plug to female RCA cable x1
