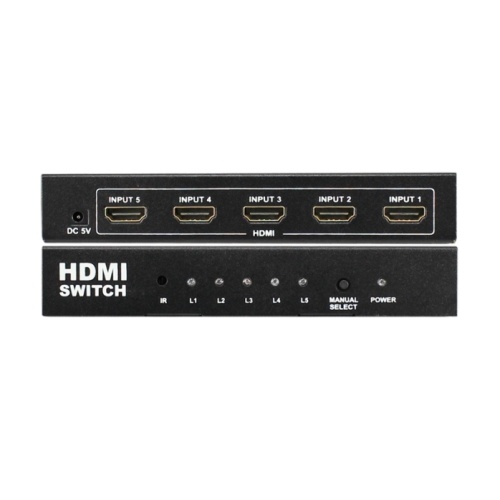

5 Inputs 1 Output HDMI Switch with AC Adapter

                  HY-4501-V0-A 5 Inputs 1 Output HDMI Switch with AC Adapter

HY-4501-V0-A 5 Inputs 1 Output HDMI Switch with AC Adapter Introduction

This is a HDMI 5x1 Switcher with five inputs and one output
Allows five HDMI source devices switched into one HD monitor or projector
Supports the key-press-switching function, but also has the IR remote control and intelligent function. This product is small in size 149x64x25mm , and along with 5V Universal Power Adapter.

HY-4501-V0-A 5 Inputs 1 Output HDMI Switch with AC Adapter Features:

1. 5 port Hdmi Switch box Supports 5 HDMI input to 1 HDMI output port.
2. Compliant with HDMI 1.4b specification.
3. Supports deep color 30bit, 36bit.
4. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
5. Digital audio format, as DTS- HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
6. Supports signal retiming.
7. Supports Equalizer TMDS Output: 25MHz – 225MHz TMDS clock.
8. Supports up to 225 MHz TMDS clock rate(1080P@60Hz) for HDMI input.
9. Supports EDID RAM.
10. Supports 1080P input up to 10 meters AWG26 HDMI standard cable length, output up to 15 meters AWG26 cable length.
11. Inputs can be switched with the IR remote control, also can be controlled by button.
12. No loss of quality.
13. Installs in minutes.

HY-4501-V0-A 5 Inputs 1 Output HDMI Switch with AC Adapter Specifications:

HDMI resolution...................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

Support video color format--.........................................24bit/deep color 30bit, 36bit

Vertical Frequency Range....................................................1080p@60Hz
Support audio format............................. DTS-HD/Dolby-trueHD/LPCM7.1/ DTS/Dolby-AC3/DSD
Max bandwidth.........................................................................................225MHz
Max band rate......................................................................................6.75Gbps
Input/Output TMDS signal...........................................................0. 5~ 1. 5Volts p- p( TTL)
Input/Output DDC signal.................................................................5Volts p- p ( TTL)
1080P Input cable distance.............................................≤10m AWG26 HDMI standard cable
1080P Output cable distance..........................................≤15m AWG26 HDMI standard cable

Max working current--...............................................................500mA
Operating Temperaturer...................................................( - 15 to + 55℃)
Operating Humidity range............................................5 to 90% RH ( No Condensation)
Dimension ( L x W x H)..................................................149x64x25 (mm)
Weight--.......................................................................................275g

Certifications: CE FCC RoHS

HY-4501-V0-A 5 Inputs 1 Output HDMI Switch with AC Adapter Package Content:

1. HDMI 5×1 Unit x 1
2. DC 5V Power Adapter x 1
3. Remote controller x 1
4. User Manual x 1
