HDMI 4x1 Quad Multi-viewer with Seamless Switcher

                           HY-3401-M-H HDMI 4x1 Quad Multi-viewer with Seamless Switcher

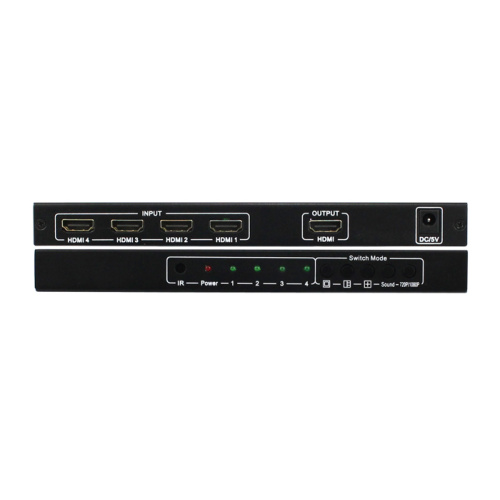

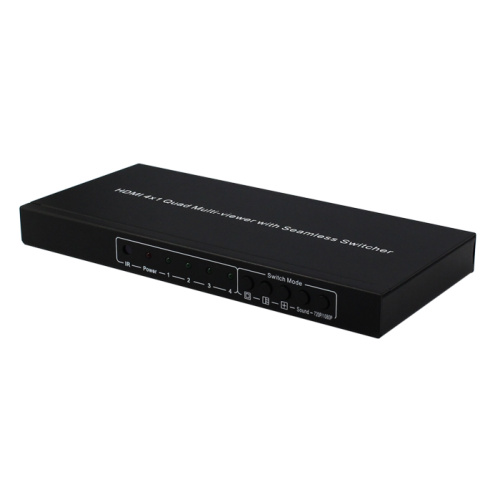

HY-3401-M-H HDMI 4x1 Quad Multi-viewer with Seamless Switcher introduction

This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switch. It supports four High definition input sources display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD inputs freely. The product can be control led by  the front button or IR controller.

HY-3401-M-H HDMI 4x1 Quad Multi-viewer with Seamless Switcher features

1. Supports 4 HDMI input ports.
2. Supports 1 HDMI output port.
3. Compl iant with HDMI 1.3a,HDCP 1.2.
4. Supports multiplexed HDMI 4-input and 1-output.
5. Supports up to 1080p High Definition resolution.
6. Supports 4by1 Quad Multi-viewer and seamless switch.
7. Supports 720/1080p output resolution.
8. Supports audio switch.
9. Supports fast switching.
10. Supports Equal izer TMDS Output: 25MHz–225MHz TMDS clock.
11. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
12. Supports 1080P input up to 15 meters and output up to 20 meters ( cable standard AWG26).
13. Inputs can be switched with the IR remote control ler, also can be con by built-in button.
14. Extend the transmission distance and improve transmission signal.
15. Compatible with DVI through a HDMI to DVI adapter.
16. Supports hot plug-and-play.
17. LED indicate signal and power mode.
18. No loss of quality.
19. Installs in minutes.

HY-3401-M-H HDMI 4x1 Quad Multi-viewer with Seamless Switcher Specifications:

Maximum Single Link Range................................................................1080P/60Hz

HDMI version........................................................................................HDMI 1.3, HDCP 1.2
HDMI input resolution.....................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
HDMI output resolution...........................................................................720p/1080p/60Hz
Supports video color format-.....-.............................................................24bit/deep color 30bit, 36bit
Vertical Frequency Range........................................................................720/1080p@60Hz
Max bandwidth--.......................................................................................225MHz
Max bandrate--..........................................................................................6.7Gbps
Input/Output TMDS signal --.......................................................................0. 5~ 1. 5Volts p- p( TTL)
Input/Output DDC signal --...........................................................................5Volts p- p ( TTL)
1080P Input cable distance--.........................................................15m AWG26 HDMI standard cable
1080P Output cable distance--.......................................................≤20m AWG26 HDMI standard cable
Max working current--......................................................................................1A
Operating Temperaturer--................................................................................(-15 to +55℃)
Operating Humidity range--.......................................................................5 to 90%RH (No Condensation)
Dimension (L x W x H)-......................................................................................200x95x20mm
Weight--..............................................................................................................460g

Certificates CE FCC RoHs and Power adapter UL certified

HY-3401-M-H HDMI 4x1 Quad Multi-viewer with Seamless Switcher Package Content

Head unit                 x1

Remote controller      x1
User Manual              x1
DC 5V Power Adapter  x1
