1080P HDMI Splitter 4 Out

1080P HDMI Splitter 4 Out Introduction

With this, You can define your own video resolutions: 3D, 1080P, mix and three audio formats ( 2CH, 5.1CH, 7.1CH). Its advanced audio and video programmable EDID settings provide the best flexibility to meet various audio and video setup requirements, from professional applications to advanced home theater setups.

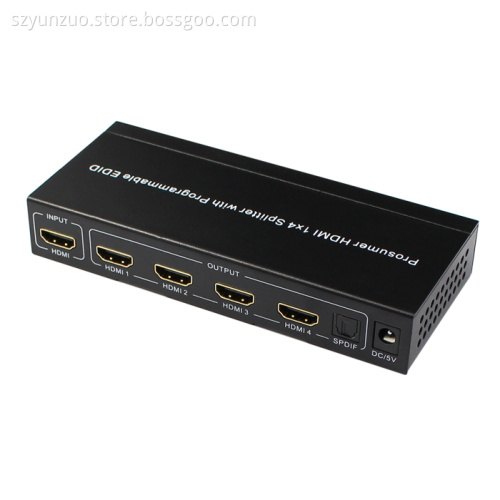

This is latest generation 1x4 HDMI Splitter with Programmable EDID, SPDIF Audio Output with Remote Control. This splitter is a full size, full metal jacket constructed product. All the input, output, audio, and power connections are placed at the back panel of the unit. Its front panel has various LED lights to display the audio and video settings and output status. This is the only HDMI 1x4 Splitter that comes with a remote control and a SPDIF audio output. This HDMI 1x4 Splitter provide 1 HDMI input signal to 4 HDMI sink devices (display or receiver) and one SPDIF audio output . All the signals are simultaneously.

Features:

◆ HDMI splitter 1 in 4 out with audio SPDIF output
◆ Support HDMI v1.3, Supports 12-bit Deep FULL HD, 1080P 3D (To get 3D, all units connected to the splitter outputs must support 3D)

◆ HDCP 1.2 Compliant

◆ Three Programmable Audio EDID Settings for 7.1CH, 5.1CH and 2CH.
◆ It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
◆ Support high resolutions up to 1080p, including 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
◆ Supports Standard Audio, DSD Audio and HD (HBR) Audio.
◆ Extend the transmission distance and improve transmission signal.
◆ Compatible with DVI through a HDMI to DVI adapter.
◆ Support hot plug-and-play.
◆ Full Size Metal Jack Construction with Front Panel LED Indicators.
◆ Power supply(please refer to technical parameter).

Specifications

HDMI Source Input Port ......................................... 1
Display Device Output Port .....................................4
Source Port Connector ......................... 19pin HDMI
Display Device Port Connector ............. 19pin HDMI
Device port LED and system status LED ............. 10
Single Link Range .................................. 1920*1200
HDMI Version ........................................... HDMI 1.3
Bandwidth ......................................... Up to 225Mhz
Signal speed ...................................... Up to 3.4Ghz
The length of output cable ............................. ≤10M
The cable standard ..................... 26AWG HDMI 1.3
1080P Vertical Frequency Range ................... 60Hz
Power Consumption(max) ......................... 10 Watts
Operation Temperature ......................... 0℃ to 70℃
Working voltage ............................................ DC 5V

Certification: CE FCC RoHS

Package Content:

1. 1x4 HDMI Splitter with audio out spdif  x 1
2. Power Adaptor x 1
3. User Manual x 1
4. Remote Control x 1
