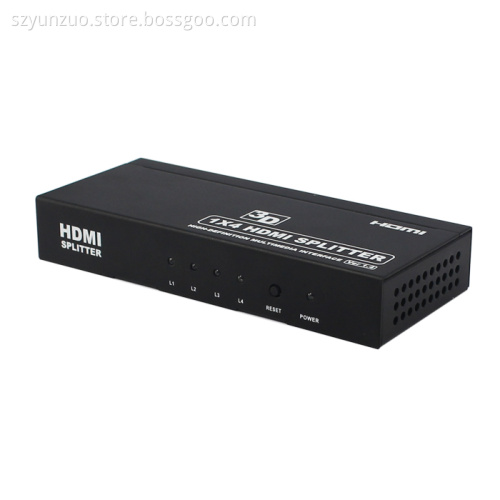

Powered HDMI Port Splitter 1x4
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE FCC RoHS |
| Transportation: | Ocean,Land,Air |
HDMI Port Splitter 1x4Introduction:
This HDMI splitter is a product can distribute 1 way HDMI signal to 4 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, TV and more other devices.
Contact:tony at szyunzuo.com
Features:
- Split one HDMI input signal to four HDMI output signals identical to the input signal
- Fully HDMI 1.3 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
- Supports high resolutions up to 1080p, and also supports 480i, 480p,576i, 576p, 720p, 1080i, 1080p.
- Supports 12-bit Deep Full HD, Full 3D and 1080p video.
- Supports Standard Audio, DSD Audio and HD (HBR) Audio.
- Extend the transmission distance and improve transmission signal.
- Compatible with DVI through a HDMI to DVI adapter.
- Supports hot plug-and-play.
- LED indicate signal and power mode.
- HDCP complaint
Specifications:
HDMI version ..............................................................................HDMI 1.3
HDMI resolution .......24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ..................24bit/deep color 30bit, 36bit, 48bit
Max band width ............................................................................297MHz
Max band rate ............................................................................8.91Gbps
Input/Output TMDS signal .......................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ..................................................5Volts p-p (TTL)
Max working current .......................................................................500mA
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range .............................................(-15 to +55℃)
Operating Humidity range ........................5 to 90%RH (No Condensation)
Dimension (L x W x H) .........................................................70x60x20mm
Vertical Frequency Range ....................................................1080p@60Hz
Support audio format .....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
1080P Input cable distance ...............≤15m AWG26 HDMI standard cable
1080P Output cable distance ............≤20m AWG26 HDMI standard cable
Certificates: CE FCC RoHS
Package content:
HDMI 1x4 Splitter x1
Power Adapter x1
User Manual x1
