1080P 2 Way HDMI Switch 2x1
- Payment Type:
- L/C, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE FCC RoHS |
| Transportation: | Ocean,Land,Air |

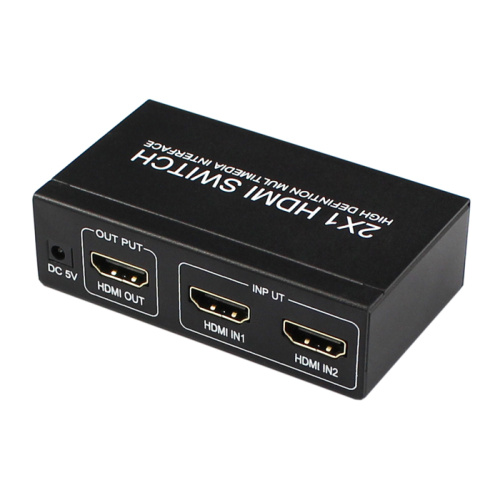

HDMI Switch 2x1:
This 2 way hdmi switch support high resolutions HDMI 1.3 up to 1920*1200, including 480i/p, 576i/p, 720p, 1080i/p, 3D
Support HDCP protocol and applicable to source device and high definition display device such as DVD and HDTV which have HDMI ports or digital ports, and are compliant with HDCP protocol.Extend the transmission distance and improves transmission signal.
Compatible with DVI through a HDMI to DVI adapter.
Support hot plug-and-play.
Convenient to connect multi-group input signals to display on one HDTV.
Save space. Allow several sources to use one high definition display device simultaneously.
Select input port by hand freely.
LED indicate signal and power mode.
Power supply (please refer to technical parameter)
Ran out of HDMI ports? Wanting to reduce cable clutter? Now you can do all that with the Dual Port HDMI Auto Switch. It has 2 HDMI input sources to provide plug-and-forget auto sensing capability that switches input automatically when a signal is detected. It also has a source select button on the switch to provide flexibility for you to manually switch between both sources.
Plug-and-forget auto sensing function only works correctly for devices that do not output continuous voltage over HDMI port when turned off. Powering on a device gives the switch output priority over the other device. Output priority is switched back to the last powered on device if the current in use device is turned off.
Specifications:
HDMI Source Input Port .................................. 2
Display Device Output Port ............................. 1
Source Port Connector ................... 19pin HDMI
Display Device Port Connector ........ 19pin HDMI
HDCP Compliant ......................................... Yes
Device Port LED ............................................. 3
HDMI Version .................................... HDMI 1.3
Single Link Range .......................... 1920*1200
Bandwidth ................................. Up to 250Mhz
Signal speed ............................... Up to 2.5Ghz
The cable standard .............................. 28AWG
The length of output cable .................... ≤10M
Vertical Frequency Range ........................ 60Hz
Power Consumption(max) .................. 3 Watts
Operation Temperature ................ 0℃ to 70℃
Working voltage ................................... DC 5V
Certifications: CE FCC RoHS
Package Content:
1. HDMI Switcher x1
2. User Manual x1
3. 5V DC Power Adapter x1 (Optional)
4. Remote controller x1 (Optional)
