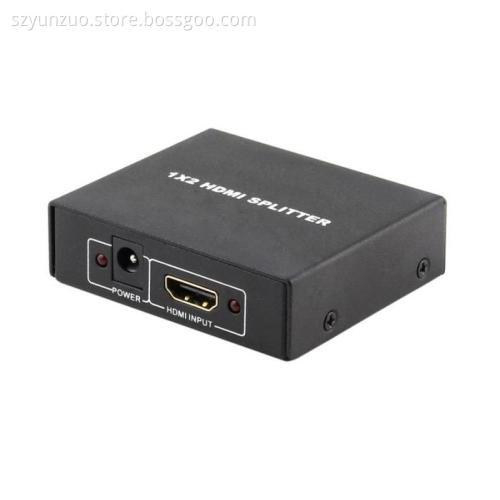

HDMI SPLITTER1x2 1080P
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 200 Bag/Bags
- Min. Order:
- 200 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Ocean, land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE RoHS FLL UL |
| Transportation: | Ocean,Land,Air |
| Port: | Ocean,land,Air |
Introduction:
This HDMI splitter enables you to use multiple screens with one HDMI source.
It will take any HDMI signal (rev 1.3) and duplicate the signal, sending the same high definition signal to 2 displays simultaneously.
Features:
l Split one HDMI input signal to two HDMI output signals identical to the input signal
l Fully HDMI 1.3 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
l Supports high resolutions up to 1080p, and also supports 480i, 480p,576i, 576p, 720p, 1080i, 1080p.
l Supports 12-bit Deep Full HD, Full 3D and 1080p video.
l Supports Standard Audio, DSD Audio and HD (HBR) Audio.
l Extend the transmission distance and improve transmission signal.
l Compatible with DVI through a HDMI to DVI adapter.
l Supports hot plug-and-play.
l LED indicate signal and power mode.
l HDCP complaint
Specifications:
HDMI
version...............................................................................HDMI
1.3
HDMI resolution
............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ....----..-..24bit/deep color
30bit, 36bit, 48bit
Max band
width..............................................................................297MHz
Max band
rate..............................................................................8.91Gbps
Input/Output TMDS signal
..........................................0.5~1.5Volts p-p(TTL)
Input/Output DDC
signal......................................................5Volts p-p (TTL)
Max working
current.........................................................................500mA
Power adapter format Input:...AC (50HZ,
60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range..................................................(-15
to +55℃)
Operating Humidity range---------5 to 90%RH (No Condensation)
Dimension (L x W x
H).............................................................70x60x20mm
Vertical Frequency
Range.......................................................1080p@60Hz
Support audio
format..................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
1080P Input cable
distance....................≤15m AWG26 HDMI
standard cable
1080P Output cable distance...................≤20m AWG26 HDMI standard cable
Weight...............................................................................................130g
Package content:
HDMI 1x2 Splitter x1
Power Adapter x1
User Manual x1
