Portable 3D Wheel Alignment

Get Latest Price

Payment Type:: T/T, Western Union

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air, DHL

Port:: Yantian, Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	300sets/ month
Supply Ability:	300sets/ month
Payment Type:	T/T,Western Union
Certificate:	FCC, CE, RoHS
Transportation:	Ocean,Air,DHL
Port:	Yantian,Shenzhen,Hongkong

Product Description

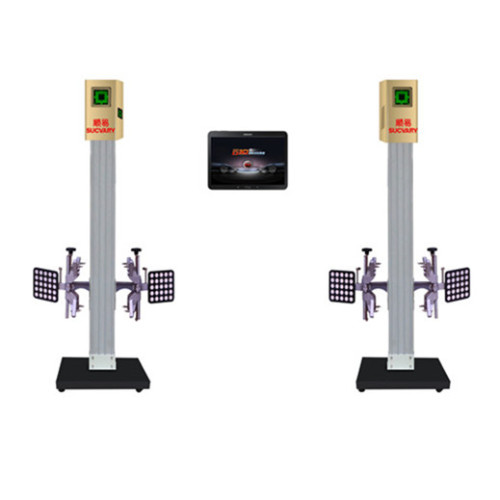

Portable 3D wheel alignment is portable machine. Portable 3D wheel alignment can be brought to other places for car wheel alignment. Two-post Wheel Alignment is for convenient service.

Portable 3D wheel alignment

Advantages of Portable 3D Wheel Alignment:

1. Without limitation of space, Stable Mobile 3D Wheel Aligner does not need to install.

2. With 3 cameras, the reference plane is car body, so it can measure almost all kinds of vehicles.

3. It supports varied operation platforms, point to point transmission by WiFi can shied interference.

4. Supported by powerful cloud service, it can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.

6. Measurement range is wide, and Wifi Wheel Alignment can also test wheel deviation besides all traditional parameters.

7. The optional one point wheel clamps can be installed within four seconds.

8. The base is movable, so it can be used for more than one car lift.

3D Wheel Aligner Calibrate

Measurement Range and Accuracy of Portable 3D Wheel Alignment:

References	Accuracy	range
Camber Angle	±0.01°	±8°
Caster Angle	±0.03°	±19°
Front SAI	±0.02°	±19°
Toe	±0.01°	±2°
Rear thrust angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track Width Difference	±0.02°	±2°
Front setback	±0.02°	±2°
Rear setback	±0.02°	±2°
Track Width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm
