Cam Truck Wheel Alignment
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Shenzhen, Hong Kong, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Shenzhen,Hong Kong,Yantian |
Wheel Alignment for Bus
Cam Truck Wheel Alignment is for professional truck, bus and trailer wheel alignment. We have been in this industry for more than 8 years. Cam Truck Wheel Alignment supports multi-operating systems like Windows, Android and IOS. This is 3D wheel alignment technology for truck wheel alignment and it is faster, easier and more stable.
Advantages of Cam Truck Wheel Alignment:
3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:
[1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;
[2]Errors caused by wheel clamp deformation can not be eliminated;
[3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;
[4]Different measurement results caused by different operational approaches and strength.
3D Truck Wheel Alignment adopts anti-shake measurement
technology.
Wheel Alignment for Heavy Duty Trucks can eliminate time errors caused by car body shake within 20
seconds, improving labor efficiency. Meanwhile, it avoids problems caused by
wireless and high-frequency interference. It can be used at any indoor places.

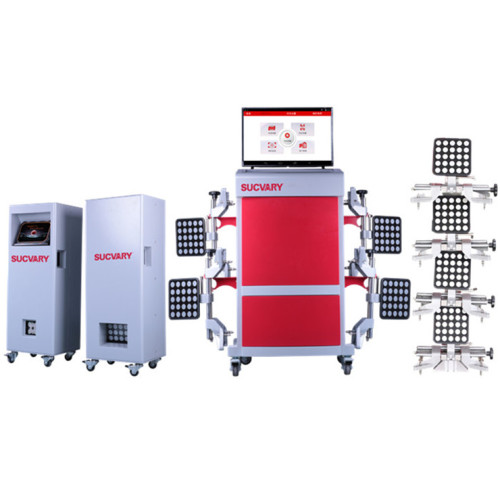

Configuration list of Cam Truck Wheel Alignment
|
model |
Sensor (1 ) |
Targets (8) |
Wheel clamp (8) |
Turntable (4) |
Frame offset tool(1) |
Tablet PC(1) |
Wedge block(2) |
Cabinet(1) |
24inch wireless TV (1) |
|||
|
SY808 |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
|||
|
SY808A |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|||
Measurement Range and Accuracy of Cam Truck Wheel Alignment:
References
Accuracy
Measurement Range
Measurement TotalRange
Camber
±0.02°
±8°
±8°
Caster
±0.05°
±19°
±19°
K.P.I
±0.02°
±19°
±19°
Toe
±0.02°
±22.5°
±45°
Turning Angle
±0.08°
±22.5°
±45°
Track
width difference
±0.03°
±2°
±8°
Front Setback
±0.02°
±2°
±4°
Maximum Turning Angle
±0.02°
±45°
±45°
Comparison between CCD and Cam Truck Wheel Alignment
CCD:
Step 1 Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;
Step 2 Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;
Step 3 Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;
Step 4 Picture ④ shows that the adjustment of No.3 axle individual toe.
Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.
5D:
Step 1 Install 8 targets and wheel clamps;
Step 2 Lay two sensors on the ground just like the picture shows;
Step 3 Drive the truck forward and turn the wheel to 8 degree to finish run-out compensation;
Step 4 Get the measurement results and monitor its dynamic
