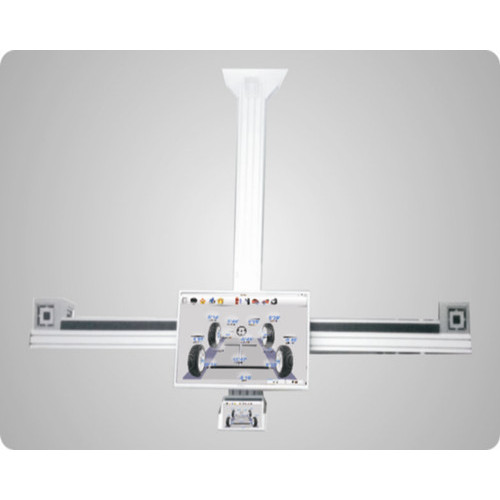

Testing Machine 3D Wheel Alignment

The process  of testing machine 3D wheel alignment is pushing the car forward and backward on the scissors lift and two cameras monitor four targets. After test on the ground the results can be shown on TV set or tablet PC. And then the car can be lifted for adjustment with testing machine 3D wheel alignment.

Advantages of Testing Machine 3D Wheel Alignment:

1.  DIY 3D wheel alignment can save space with different installation patterns.

2.   Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so  Cloud 3D wheel alignment can measure almost all kinds of vehicles.

3.   Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4.   Supported by powerful cloud service, Wifi Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5.   Four targets are crash resistant and can be exchanged. Fix wheel  claws without taking apart wheel hub cover.

6.    Measurement range is wide, and  3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.

7.   The optional one point wheel clamps can be installed within four seconds.

Measurement range and accuracy of Testing Machine 3D Wheel Alignment

Testing Machine 3D Wheel Alignment Installation Without  Calibration

Case of Testing Machine 3D Wheel Alignment:
