Small-scissor Lift Wheel Aligner
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Yantian, Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Yantian,Shenzhen,Hongkong |

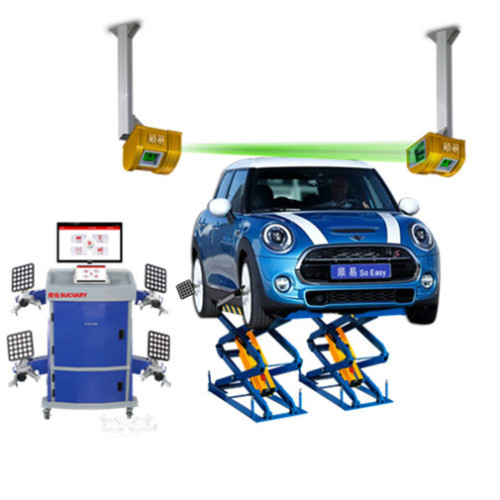

Small-scissor lift wheel aligner is a new trend since 2016. Small-scissor lift wheel aligner is benefit for all small carshops with a mini-scissor lift. The measurement and adjustment of small-scissor lift wheel aligner can be more precise with the tires hung in the air.
Advantages of Small-scissor Lift Wheel Aligner:
1.Without limitation of space, Mini-scissor Lift Wheel Alignment can be used on all kinds of lifts.
2. With 5 cameras, the reference plane is car body, so 5D wheel alignment can measure almost all kinds of vehicles, even if the vehicle is lifted.
3. Wheel Alignment For Mini-Scissor Lift supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Portable 5D Wheel Aligner is supported by powerful cloud service; Mini-scissor Lift Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. 5D wheel alignment measurement range is wide, and 5 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
.
Measurement Range and Accuracy of Small-scissor Lift Wheel Aligner:
|
References |
Accuracy |
range |
|
Camber Angle |
±0.01° |
±8° |
|
Caster Angle |
±0.03° |
±19° |
|
Front SAI |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear thrust angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track Width Difference |
±0.02° |
±2° |
|
Front setback |
±0.02° |
±2° |
|
Rear setback |
±0.02° |
±2° |
|
Track Width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
Installation of Small-scissor Lift Wheel Aligner:
Cases of Small-scissor Lift Wheel Aligner:
