Wheel Alignment 3D System
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Yantian, Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300/month |
| Supply Ability: | 300/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Yantian,Shenzhen,Hongkong |

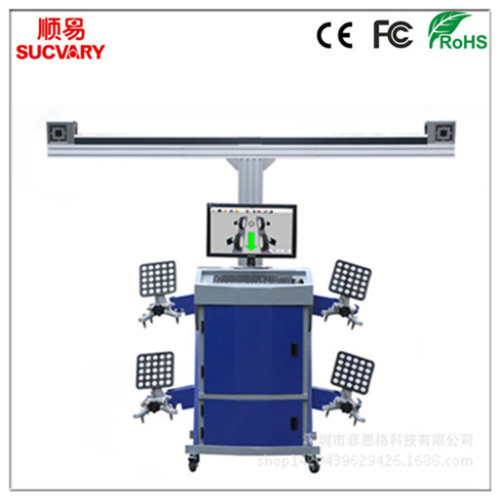

Wheel alignment 3D system is technology from 2011. 3D Auto Wheel Alignment With Tablet And TV can finish car tyre measurement and adjustment on scissors lift. Our machine has better design. Wheel alignment 3D system needs only one-time calibration in factory. Therefore, there is no trouble for end users any more.
Advantages of Wheel Alignment 3D System:
1. Cloud 3D wheel alignment can save space with different installation patterns.
2. Wifi Wheel Alignment has 3 cameras, the reference plane is car body, so Cloud 3D wheel alignment can measure almost all kinds of vehicles.
3. Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Supported by powerful cloud service, Wheel Alignment Machine can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Measurement range is wide, and 3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of Wheel Alignment 3D System
|
References |
Accuracy |
Measurement range |
|
Camber |
±0.01° |
±8° |
|
Caster |
±0.03° |
±19° |
|
K.P.I |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear Wheel Thrust Angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track width difference |
±0.02° |
±2° |
|
Front Setback |
±0.02° |
±2° |
|
Rear Setback |
±0.02° |
±2° |
|
Track width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
Wheel Alignment 3D System Installation
Case of Wheel Alignment 3D System:
