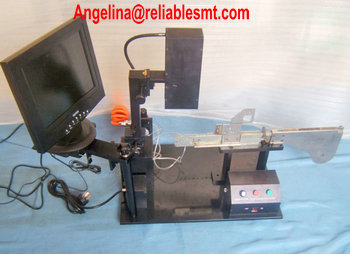

SMT feeder calibrating JIG FUJI CP4 feeder calibration jig

Model: fuji feeder calibration jip
All-in-One Calibration Jig
Includes Alignment Jig

Product Description

product name:FUJI CP4 SMT FEEDER calibration jig

Dimensions:L500*W350*H500(MM)

Product parameters

Power supply: 220V

The number of feeders:100

Compressed air requirements:5kg/cm2

Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera

Product Information

1.The whole structure is streamlined, operating simply, functional optimization. And use the high-

precision 0 gap rail, ensure location stability, greatly improve work efficiency.

2.Accurate detection. Reclaimer position, height, bar height, can do accurate measurements.

To better grasp the quality status.

3.Using 12 'color LED display, ring LED lighting ,50 times magnification CCD camera, making

the structure more compact and beautiful. Effectively reducing eye fatigue, improve job quality.

4.Choose a variety of models such as FUJI,YAMAHA,SAMSUNG,SANYO,SONY,

PANASERT,Universal,FUTURITY,PHILIPS,KME,SIEMENS,JUKI,I-PULSE ,Hitachi ,CASIO etc.
