Hidden Framing Glass Curtain Wall

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 100 Square Meter

Min. Order:: 100 Square Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,China
Productivity:	50000
Supply Ability:	5000 Square.meters/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2008
Transportation:	Ocean,Land

Product Description

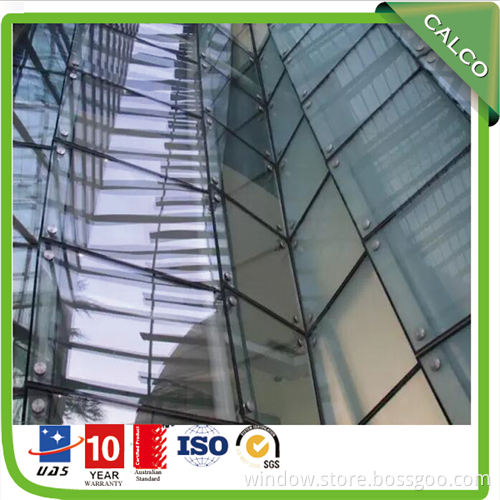

Hidden Framing Glass Curtain Wall

Mirror/ reflection structural glass curtain wall profile wall thickness: 2.5 mm thermal break/ standard profiles

opening style: 1 slider/ 2 sliders/3 sliders design, could make 2+0, 2+2, 2+1, 3+3
European design, single sash can load 250kg, single sash size 3350mm*3350mm
whole structure design, great sound insulated, heat insulated, great air-proof and water-proof, excellent wind loading performance
When door sliding to close the frame, less than 2.0mm, it could lock by itself. Children care design
great vision and strength,it suits for luxury villas and stars hotels

Curtain Wall Description	semi-exposed framing glass curtain wall hidden frame glass wall from China supplier Shenzhen manufacturer
Systems	1. Frame Systems	Exposed framing glass wall
		Semi-exposed framing glass wall
		Invisible framing glass wall
	2.Frameless systems	Full glass curtain wall
		Structural Glass curtain wall

Glass	1.Single toughened(tempered) glass:5mm.6mm.8mm.12mm
	2.Double Glazed glass:5+9A+5mm,5+12A+5mm,6+19A+6mm
	3.Laminated glass:5+0.38PVB+5mm,5+0.76PVB+5mm
	4.Tinted lowe glass,Obsucre glass,Reflection tint glass ,Self-cleaning glass,translucent glass


Performance	Wind pressure resistance	≥5.0kpa	GB/T 7106-2008 / 9class
	Air infiltration	≤0.5m3/(h.m)	GB/T 7107-2008 / 8 class
	Water penetration	≥0.35kN/m²	GB/T 7108-2008 / 6 class
	Sound insulation	≥35dB	GB/T 8485-2008 / 6 class
	Heat preservation (K value)	≤2.0W/(m.K)	GB/T 8484-2008 / 10 class
	Shading Coefficient	≤0.2	GB/T 2680-2008 / 7 Class

Profile finished	1.Mill finish;2.Anodized;3.Powder coating; 4.Electrophoresis;5.sandblast

Sealant	silicon sealant, Polysulfide sealant,EPDM sealant
