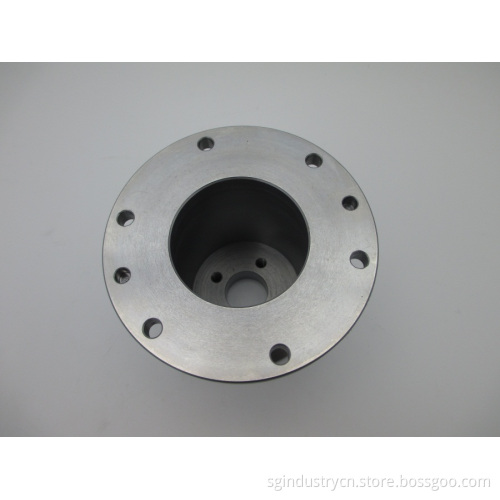

Workholding Jig Fixtures Tool Fabrication

The SS400 steel workholding jig fixtures parts from SGI can be widely used your standard machines or special machines. We have no MOQ for your workholding jig fixtures and we are able to give quotation within 24 hours. 100% inspection of the QC check and SGI will ensure the high quality of workholding jig fixtures for your projects.

1. Materials that are available for workholding jig fixtures
Fe: Fe360/ 1045/ 1049/ P20/ S136/ M2/ H13/ D2/ 440C/ 4140/ O1
Stainless Steel: 303/ 304/ 316
Al: 2017/ 5052/ 6061/ 7075
Cu: C11000/ C27400 /C34200/ C17200
Resin: Plastic/ Nylon/ POM/ Teflon/ Resin/ POM/ ABS
Else: Bakelite/ Organic glass/ Ti/ Mo / Derlin/ Peek/ Ceramics

2. Metal processing available for workholding jig fixtures

3. Surface finish available for workholding jig fixtures

Laser-printing, clear/ black anodizing, zinc plating, chrome plating, electroplating and nitriding are common treatments in SGI factory.

4. Tolerance for the for workholding jig fixtures
 From simplest to precision of +/- 0.005mm.

5. Files formats accepted when clients send us drawing

 3D: Pro/E . UG . MasterCam
 2D: AutoCad
 Accepted file format: .igs .prt .stp .x_t .dxf .dwg .pdf .jpg .tif .jpg .bmp .doc .xls.

6. SGI service team

7. Express and Delivery

DHL, FedEx, UPS for small kilos (2- 3days); By sea for big kilos (30days).
