TF-C6UR RS232+USB LED Control Card LED control system

Model State	TF-C6UR/TF-C3U Batch supply
Function introduction	Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
Usage	indoor/outdoor
USB function:	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Pixel	Single colour2048x64;1024x128;Double colour1024x64;512x128
Ports	four 08 port;eight 12 ports
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2M
Program number	Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.(Quantity in storage space under the premise of memory)
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	Support BMP,JPG,GIF,WMF,ICO
Brightness	Level 16 highlighted,support manual
Test button	manual
Test buttons	Test buttons on-board,can switch over to test mode and color test mode.
Extension function:	Temperature sensor/Temperature&humidity sensor(Diagram for connection),RF,RS485 networking,Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(4.5V~6V),Power consumption<0.5W
Working temperature	-30ºC~70ºC
Size	73mm*103mm,Hole spacing:55mm*95mm

U-disk controller Manual
1. screen parameters Setup of U-disk controller and program edit are the same as serial port controller.Please read related reference manual.
2. Export program to U disk

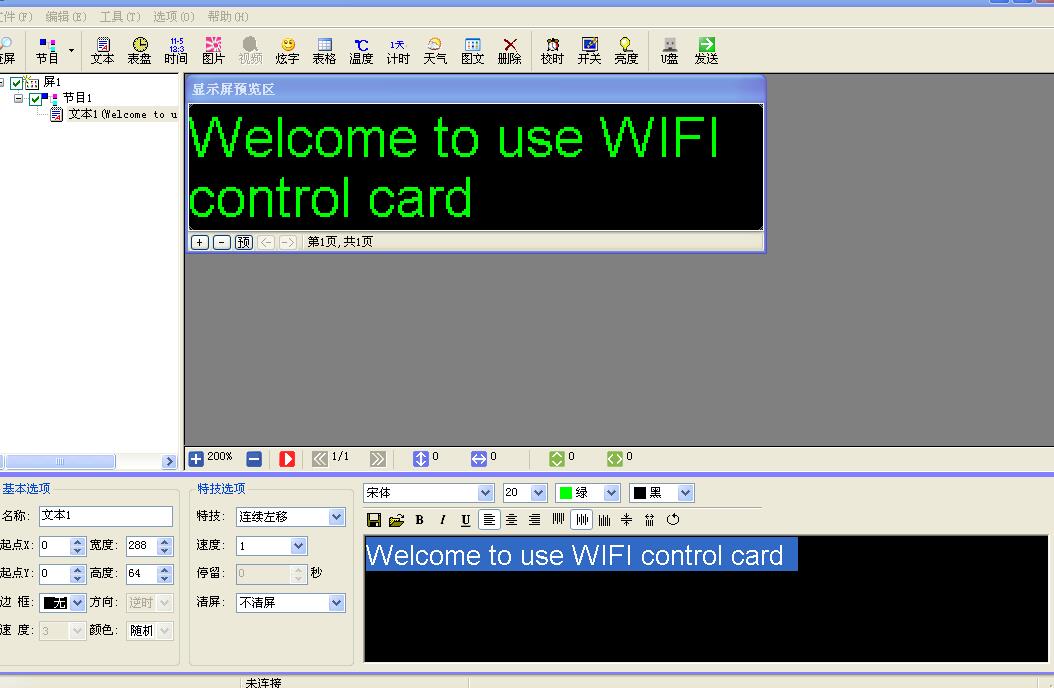

Via button of the toolbar,export program to U disk. Meanwhile,you could select exporting screen parameters or not.( screen parameters will not change before you reset)
If you want to set the screen parameters via the U-disk,please select"Include screen parameters",and "sync timer"to regulate time.Then,Click"Save", export content to U disk.

   Figure 9, Sending
3.Use U-disk to set the interface of controller.
After having imported program U-disk out from the computer,Connect the U-disk to the controller, Screen shows "USB",that proves connecting successfully and controller is copying content.When copy finished, screen shows "OK",then U-disk out, screen shows content natural.

Figure 10, copying content           Figure 11,Copy finished, please pull out U-disk.
If the screen shows"E00X",It means there is something wrong. Implication as follows:

All TF cards error code:
