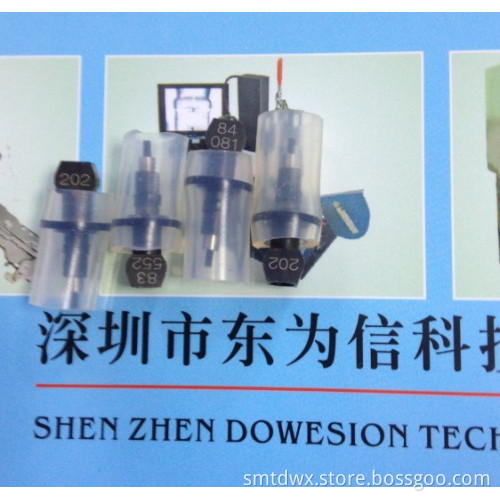

YAMAHA KGT-M7720-A0X NOZZLE 202A ASSY.

YAMAHA KGT-M7720-A0X NOZZLE 202A ASSY.

YAMAHA YG12/YS12 YS24 NOZZLE

KHN-M7710-A1X NOZZLE 301A ASSY

KHN-M7710-A3X NOZZLE 301A ASSY

KHN-M7710-A2X NOZZLE 301A ASSY.

KHN-M7720-A2X NOZZLE 302A ASSY

KHN-M7720-A1X NOZZLE 302A ASSY.

KHY-M7740-A0X NOZZLE 303A/314A ASSY

KHY-M7750-A0X NOZZLE 304A/315A ASSY

90990-17J013 KGB-M7742-00X YAMAHA 74A 304 315A O-RING

KHY-M7770-A0X NOZZLE 306A/317A ASSY

KHY-M77A0-A0 NOZZLE 310A ASSY

KHY-M7710-A0 NOZZLE 311A ASSY

KHY-M7710-A3 NOZZLE 311A ASSY

KHY-M7710-A2 NOZZLE 311A ASSY

KHY-M7710-A1 NOZZLE 311A ASSY.

KHY-M7720-A1 NOZZLE 312A ASSY

KHY-M7720-A2 NOZZLE 312A ASSY

KHY-M7720-A0 NOZZLE 312A ASSY

KHY-M7730-A0 NOZZLE 313A ASSY

KHY-M7730-A1 NOZZLE 313A ASSY

YG200/YG200L

KGT-M7710-A0X NOZZLE 201A ASSY. 1 Type 201A

2 KGT-M7720-A0X NOZZLE 202A ASSY. 1 Type 202A

3 KGT-M7730-A1X NOZZLE 203A ASSY. 1 Type 203A 2004.12

4 KGT-M7760-A0X NOZZLE 206A ASSY. 1 Type 206A

5 KGT-M7790-A0X NOZZLE 209A ASSY. 1 Type 209A

6 KV8-M711N-A0X NOZZLE & SHAFT ASSY. 1

7 KV8-M71U0-01X NOZZLE ASSY. 1 71/ 72/ 73F

8 KV8-M71N1-A0X NOZZLE 71F ASSY. 1

9 KV8-M71U5-00X SCREW 2

10 KV8-M71N2-A0X NOZZLE 72F ASSY. 1

11 KV8-M71N3-A0X NOZZLE 73F ASSY. 1

12 KV8-M87XD-A0X NOZZLE 73F-D ASSY. 1 Op.

13 KV8-M71U8-00X BLOCK, NOZZLE 1

14 KV8-M71R1-10X SHAFT 1 1

15 KV8-M71R1-20X SHAFT 1 1

16 KV8-M71R1-30X SHAFT 1 1

17 KV8-M712N-A0X NOZZLE & SHAFT ASSY. 1

18 KV8-M71U0-10X NOZZLE ASSY. 1 71/ 79/ 73F

19 KV8-M71N9-A0X NOZZLE 79F ASSY. 1

20 KV8-M713N-A0X BLOCK & NOZZLE ASSY 1

YV100X

KV8-M7710-A1X NOZZLE 71A ASSY. 1

2 KV8-M7720-A1X NOZZLE 72A ASSY. 1

3 KV8-M7730-00X NOZZLE 73A 1

4 KV8-M7740-A0X NOZZLE 74A ASSY. 1

5 KGB-M7742-00X O-RING 1 KSP0004

5-1 90990-17J013 O-RING 1 2001.11 M1X0134

6 KV8-M7741-00X NOZZLE 74A 1

7 KV8-M7760-00X NOZZLE 76A 1

8 KV8-M77WL-A0X CIRCLE NOZZLE 7A 1

8-1 KV8-M7790-A0X NOZZLE 79A ASSY. 1 2002.9 M280135

KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F

2 KV8-M71U5-00X SCREW 2

3 KV8-M71U6-00X HOUSING NOZZLE 1

4 KV8-M71U1-00X NOZZLE 1 1

5 KV8-M71U7-00X SPRING 1

6 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F

7 KV8-M71U5-00X SCREW 2

8 KV8-M71U6-00X HOUSING NOZZLE 1

9 KV8-M71U2-00X NOZZLE 2 1

10 KV8-M71U7-00X SPRING 1

11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F

12 KV8-M71U5-00X SCREW 2

13 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1

13-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F 2004.8 MA70130

YV100II

KM0-M711A-31X FLOATING NOZZLE(for Head1) 1 TYPE 31

2 KM0-M711A-03X NOZZLE A 1 TYPE 31

3 KM0-M711C-02X NOZZLE C 1 TYPE 32-2

4 KM0-M711D-00X NOZZLE D COMP 1 TYPE 33

5 KM0-M711D-12X NOZZLE D 1

6 KGB-M7742-C0X O-RING P4 1 O-RING P4 Type B

6-1 KG7-M711D-C0X O-RING 1 2001/10/01

7 KM0-M711E-00X NOZZLE COMP 1 Type 34

8 KM0-M711E-12X NOZZLE 1

9 KGA-M7752-00X O-RING P9 1 B-P9

9-1 KG7-M711E-00X O-RING 1 2001/10/01

10 KM0-M71AB-A0X NOZZLE AB 1 Type 35

11 KM0-M71MN-A0X CIRCLE NOZZLE 3A 1

YV88X 88XG

KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A

2 KV7-M7713-00X O-RING 5 SS-015 Reserve4

2-1 90200-02J015 O-RING 5 M1X0094

3 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A

4 KV7-M7730-00X NOZZLE 63A 2 Type 63A

5 KV7-M7740-A0X NOZZLE 64A ASSY. 2 Type 64A

6 KV7-M7741-00X BODY. NOZZLE 64A 1

7 KGB-M7742-00X O-RING 5 KSP0004

7-1 90990-17J013 O-RING 5 M1X0134

8 KV7-M7750-A0X NOZZLE 65A ASSY. 2 Type 65A

9 KV7-M7751-00X BODY. NOZZLE 65A 1

10 KGA-M7752-00X O-RING 5 KSP0009

10-1 90990-17J015 O-RING 5 M1X0134

11 KV7-M7760-00X NOZZLE 66A 2 Type 66A

12 KV7-M77GX-A0X CIRCLE NOZZLE 6A 2 CIRCLE NOZZLE

12-1 KV7-M7790-A0X NOZZLE 69A ASSY. 2 M340108

KGA-M71N1-A0X NOZZLE 61F ASSY. 2 TYPE 61F

2 KGA-M71N1-B0X NOZZLE 61F SUB ASSY. 1

3 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4

4 KV7-M71S2-00X O-RING 5 SS-038.Reserve4

4-1 90200-02J038 O-RING 5 2001.11 M1X0060

5 KGA-M71N2-A0X NOZZLE 62F ASSY. 2 TYPE 62F

6 KGA-M71N2-B0X NOZZLE 62F SUB ASSY. 1

7 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4

8 KV7-M71S2-00X O-RING 5 SS-038.Reserve4

8-1 90200-02J038 O-RING 5 2001.11 M1X0060

9 KV7-M71N3-A1 NOZZLE 63F ASSY. 2 Type 63F

10 KV7-M71N3-B1X NOZZLE 63F SUB ASSY. 1

11 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4

12 KV7-M71S2-00X O-RING 5 SS-038.Reserve4

12-1 90200-02J038 O-RING 5 2001.11 M1X0060

13 KV7-M71N4-A0X NOZZLE 64F ASSY. 2 TYPE 64F

14 KV7-M71N4-00X BODY, NOZZLE 4 1

15 KGB-M7742-00X O-RING 5 Reserve4 (KSP0004)

15-1 90990-17J013 O-RING 5 2001.11 M1X0060

16 KV7-M71S2-00X O-RING 5 SS-038.Reserve4

16-1 90200-02J038 O-RING 5 2001.11 M1X0060

17 92A08-03305 SET SCREW M3X5 3 Reserve2

18 KV7-M71N5-A0X NOZZLE 65F ASSY. 2 TYPE 65F

19 KV7-M71N5-00X BODY, NOZZLE 5 1

20 KGA-M8752-00X O-RING 5 Reserve4 (KSP0007)

20-1 90990-17J014 O-RING 5 2001.11 M1X0060

21 KV7-M71S2-00X O-RING 5 SS-038.Reserve4

21-1 90200-02J038 O-RING 5 2001.11 M1X0060

22 92A08-03305 SET SCREW M3X5 3 Reserve2

23 KV7-M71N6-A0X NOZZLE 66F ASSY. 2

24 KV7-M71N6-B0X NOZZLE 66F SUB ASSY. 1

25 KV7-M71S4-00X O-RING 5 SS-065.Reserve4

25-1 90200-02J065 O-RING 5 2001.11 M1X0060

26 92A08-03303 SET SCREW M3X3 3

27 KV7-M71M0-A0X NOZZLE HOLDER ASSY. 2

28 KV7-M71M0-00X HOLDER NOZZLE SP 1

29 KV7-M71S4-00X O-RING 5 SS-065.Reserve4

29-1 90200-02J065 O-RING 5 2001.11 M1X0060

30 KG7-M7137-A0X LEAF SPRING 4

31 KG7-M7169-00X SCREW 4 Reserve2

32 KG7-M7170-00X WASHER 4 Reserve2

32-1 90990-28J002 WASHER 4 2001.11 M1X0060

33 92A08-03303 SET SCREW M3X3 3 Reserve2

34 KV7-M87GF-A0X CIRCLE NOZZLE 6F 2

34-1 KV7-M71N9-A0X NOZZLE 69F ASSY.

KG7-M9231-00X PLATE, EDGE CLAMP 1
2 KG7-M9232-00X PLATE 2, GUIDE 2
3 KG7-M9233-00X BRACKET, CYLINDER 1
4 KG7-M9234-00X NUT, SHAFT 2 NF10-8VLUU
5 KG7-M9235-00X SHAFT 2 CS 8h6 x 60
6 KG7-M9236-10X CYLINDER 1 JDA 12 x 5
7 KG7-M9237-00X COLLAR 3 5
8 KG7-M9238-00X COLLAR 4 1
9 KG7-M9130-00X GUIDE 2 1
10 KG7-M9131-00X PLATE 3 , GUIDE 1
11 $BF4 BU JOINT 2
12 91317-03006 BOLT 6
13 91317-03010 BOLT 5
14 91317-03022 BOLT 2
15 91317-04006 BOLT 2
16 91317-04010 BOLT 4
17 98701-03010 SCREW, FLAT HEAD 5
Push-in
1 KG7-M9221-00X PLATE, PUSH IN 1
2 KG7-M9222-00X BRACKET, PUSH IN 1
3 KG7-M9223-00X HOLDER, CYLINDER 1
4 KG7-M9224-00X COLLAR 1 1
5 KG7-M9226-00X SHOULDER BOLT 1 MSB6.5-35
6 KG7-M9227-10X ROD END CYLINDER 1 CRE-4 x 0.7
7 K98-M7193-00X BEARING 1 F68622
8 KG7-M9166-00X CYLINDER 1 PDA 10 x 30-1
9 $SC4-M5A JOINT 2
11 91317-04006 BOLT 2
12 91317-04010 BOLT 2
13 91317-04015 BOLT 1
14 91317-06020 BOLT 1
15 92901-04600 WASHER, PLAIN 3
16 95301-06600 NUT, HEXAGON
