Basic Info

Place of Origin:	Shenzhen China
Productivity:	1000pcs/month
Supply Ability:	1000pcs/month
Payment Type:	T/T
Incoterm:	EXW
Certificate:	ISO9001:2008; CE; FCC; ROHS; TUV.
Transportation:	Ocean,Land,Air

Product Description

NS810 car coating paint spectrophotometer manufacturer

Incomparable Accuracy

Spectrophotometer NS810

Company info. :

HTB1drAVJXXXXXcMXXXXq6xXFXXX8 Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.

Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.

The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.

Brief Introduction:

NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

Application :

It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.

Application

Specification :

Model	NS810
Illumination/observation system	d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
Integrating sphere Size	Φ58mm
Light Source	Combined LED sources
Sensor	Silicon photodiode array
Wavelength range	400~700nm
Wavelength pitch	10nm
Reflectance range	0~200%
Measuring Aperture	Φ8mm
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔEcmc(l:c), CIE2000ΔE*00,ΔE(h)
Other Chromaticity Data	WI(ASTM E313,CIE/ISO,AATCC, Hunter), YI(ASTM D1925,ASTM 313), Metamerism Index (Mt), Color Strength Color Stain, Color Fastness
Observer	2°/10°
Illuminant	D65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Display Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE94, ΔEcmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time	1.5s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=9077230mm
Weight	600g
Battery	Li-ion battery. 2800 times within 8 hours.
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	TFT 3.5inch, Capacitive Touch Screen
Interface	USB/RS-232
Data Memory	1000 Standards, 15000 Samples
Operating Temperature	0~40℃(32~104°F)
Storage temperature	-20~50℃(-4~122°F)
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory	Universal Test Components, Micro Printer, Powder Test Box
Notes	The specifications are subject to change without notice.

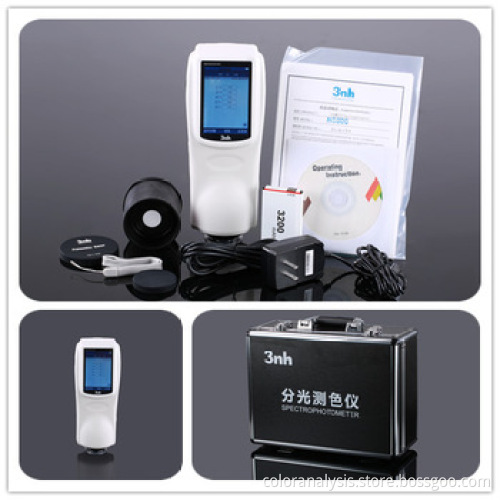

Product Image :

NS810 Spectrophotometer

HTB1cqt2JXXXXXXqaXXXq6xXFXXXG spectrophotometer5 (1)

Related Knowledge about Spectrophotometer:

Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the colo
