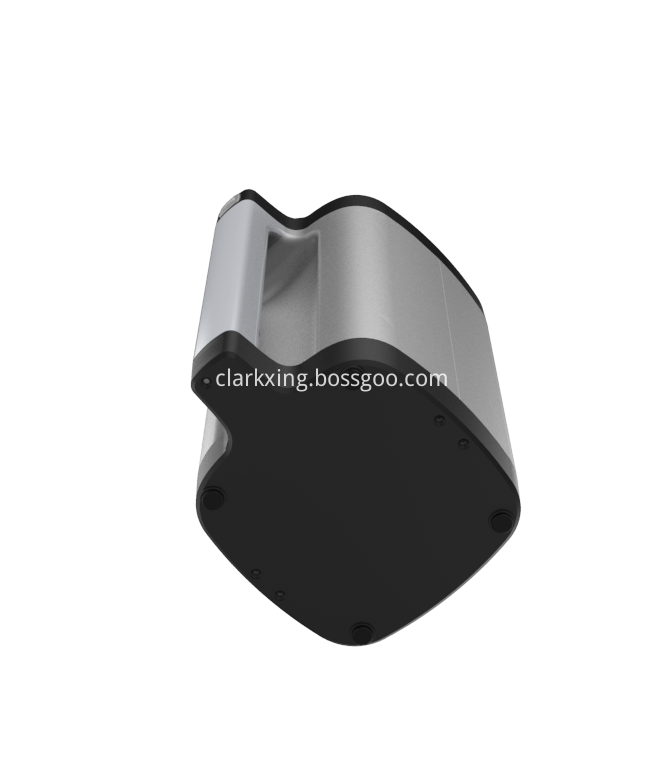

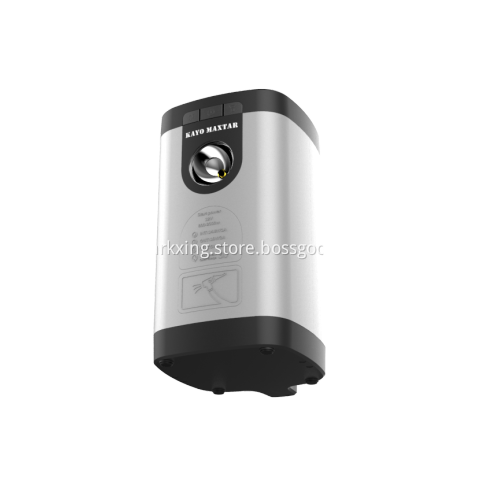

large capacity jump In-trunk Outdoor Spotlight and Alarming Lamp

large capacity jump durable reliable ABS In-trunk Outdoor Spotlight & Alarming Lamp

Standard steps of car jump starter In-trunk Outdoor Spotlight and Alarming Lamp
1. Firmly clamp the anode of automobile storage battery (+) with red clamp and the cathode (-) of the storage battery with black clamp;
2. Plug the connector of battery cable into (automobile) starting power supply interface of this product.
3. Try to start the automobile normally.
4. After the automobile is started, immediately unplug the battery cable connector from starting interface.
5. Remove red and black clamp (this product will automatically exit start mode)

Precautions: ABS In-trunk Outdoor Spotlight and Alarming Lamp
1. Before start, ensure red and black clamp are firmly clamped and there is sufficient safety distance between red and black clamp to avoid the falling off or collision of red and black clamp caused by engine vibration after the starting of the automobile.
2. It is prohibited to directly clamp red and black clamp, otherwise, safety accident might be incurred.
3. After the automobile is started, please evacuate personnel to be away from engine compartment in order to prevent the personal harm caused by engine running.
4. Take off main engine within 30 seconds after the start of the automobile, otherwise, this product might be damaged or even safety accident can be incurred.
5. In case it is started for many times, please check the residual battery level before each time of start.
6. People (especially children) not familiar with this product are prohibited to use this function.


Automobile storage battery
Red clamp
Black clamp

Tire Pumping Function
Pump Working Voltage: 12 V
Electric Current: ≦7A
Power: ≦90w
Working Pressure: 10 kg/c㎡
Air Displacement: 15 L/M
Air Pumping Time: 7 Minutes to 2.5kg/c㎡ tire pressure for 195/50 R16 Tire


Other functional application ABS In-trunk Outdoor Spotlight and Alarming Lamp
Rescue signal light and flashlight
1. In case the vehicle is stopped due to fault or rescue is required, you can use the flashlight or rescue signal light function of this product.
2. Make long pressing of on/off button to enter to function mode and then switch among four different kinds of mode through each time of press; LED flashlight/SOS (three long and three short)/burst flashing (LED)/ rescue signal light (white color)


LED flashlight
SOS (three long and three short)
Rescue signal light (white color)
Burst flashing (LED)

Charging of mobile phones (tablet PCs/other digital products)
1. The original USB charging cable of this product has its own Micro USB interface, but you can also directly use your mobile phone (digital) USB charging cable. This product supports all USB charging digital devices.
2. After the charging cable is well connected, lightly press key/on button to enter to charging state; after the charging cable is disconnected, this product will be automatically switched off.


Charging of laptops In-trunk Outdoor Spotlight and Alarming Lamp
1. This product provides original laptop charging cable, please select the adapter matching your laptop.
2. After the charging cable is well connected, lightly press key/on button to enter to charging state; after the charging cable is disconnected, this product will be automatically switched off.


Laptops/imaging equipment
1. This machine is applicable to 12V/2A power supply of imaging equipment, such as cameras and other digital devices.
2. After the charging cable is well connected, lightly press key/on button to enter to charging state; after the charging cable is disconnected, this product will be automatically switched off.
