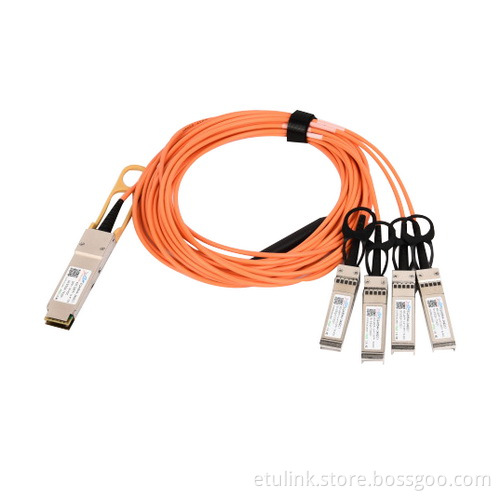

40G QSFP+ to 4X 10G SFP+ Active Optical Cables
-
USD153≥1 Piece/Pieces
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, CFR, CIF, CPT
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,CPT |
| Certificate: | ISO,CE,FCC,SGS,Rohs |
| HS Code: | 8517706000 |
| Port: | Shenzhen |
40G QSFP+ to 4X 10G SFP+ Active Optical Cables
ITEM NO.:EQSP4A-492AOCxx
DATA RATE:40G
PRODUCT ORIGIN:China
SHIPPING PORT:ShenZhen
Package type: Individual package
Features
QSFP+ AOC end:
Ø Compliant to the 40GBASE-SR4 and XLPPI
Ø Specification per IEEE 802.3ba-2010 and supporting
Ø 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
Ø Compliant to the industry standard SFF-8436
Ø QSFP+ Specification
Ø Power Level 1: Max Power < 1.5 W
Ø Operate at 10.3125Gbps per channel with 64b/66b
Ø encoded data for 40GbE application and at 10Gbps
Ø with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 4× SFP+ end:
Ø Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
Ø Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor [IPF"
Ø Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
Ø 0 to 70 C degree case temperature operating range
Ø Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
Ø Hot pluggable for ease of servicing and installation
Ø Two Wire Serial interface
Ø Utilizes optical fiber for high density and thin, lightweight cable management
Applications
Ø 40GbE and 10GbE break-out applications for Datacom switch and router connections
Ø 40G to 4×10G density applications for Datacom and Proprietary protocol applications
