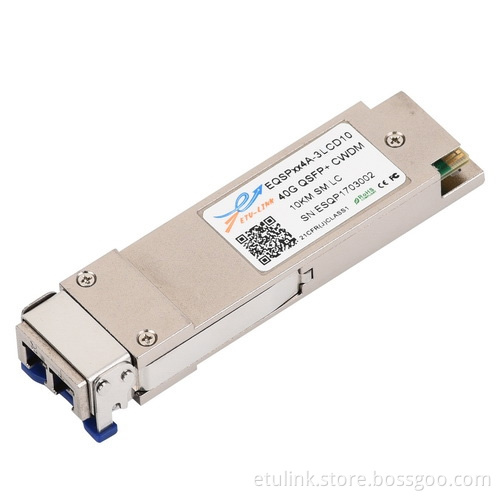

40G QSFP+ LR4 CWDM 10KM TRANSCEIVER
-
USD350≥1 Piece/Pieces
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Air, DHL;Fedex;UPS;SF
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000Pcs/month |
| Supply Ability: | 100000Pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | ISO9001: 2008 |
| HS Code: | 8517706000 |
| Transportation: | Air,DHL;Fedex;UPS;SF |
| Port: | Shenzhen |
40G QSFP+ LR4 CWDM 10KM TRANSCEIVER
ITEM NO.:EQSPXX4A-3LCD10
DATA RATE:40G
WAVE LENGTH:CWDM
DISTANCE:10KM
CONNECTOR:LC
FIRST:SM
DDM:YES
PRODUCT ORIGIN:China
SHIPPING PORT:ShenZhen
Package type: Individual package or 10pcs/package
Features
Ø Transmission data rate up to 11.2Gbps per channel
Ø QSFP+ MSA compliant
Ø Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
Ø 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1270, 1290, 1310 and 1330nm
Ø High Sensitivity PIN-TIA with optical DEMUX
Ø Up to 10km reach over standard single mode fiber
Ø Compliant with QDR/DDR Infiniband data rates
Ø Hot pluggable electrical interface
Ø Lower power consumption
Ø Operating case temperature 0°C to +70°C
Ø 3.3V power supply
Ø RoHS 6 compliant(lead free)
Applications
Ø 40GBASE-LR4 40G Ethernet links
Ø Infiniband QDR and DDR interconnects
Ø Client-side 40G Telecom connections
