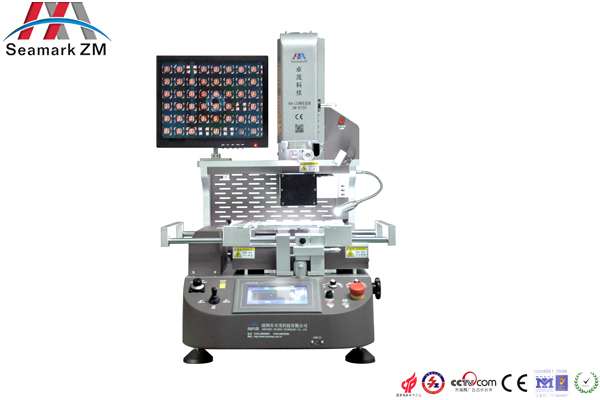

ZM-R720 Repair LED BGA Machine

Skype: Kein Young

Wechat: Leoakone

Video for the Machine Operation      https://youtu.be/obEhCWim2dw

Main Features:

1,Suitable for LED lamp beads repairing, size of micro LED components not less than 0.6*0.6 mm can be repaired

2,Suitable for LED lamp beads of tape packaging and bulk materials,Also any BGA and components which are difficult to repair.

3,High solution optical alignment system,accurate LED components positioning,ensure precise mounting.

4,Optical alignment is controlled electrically,can rotate automatically

5,Mounting head built-in pressure testing device,to protect the PCB

6,built-in infrared laser positioning,fast positioning for PCB.

7,Adopt HIWIN precision guide rail for up and down movement system,ensure reliable and accurate running

8,Adopt up and down alignment for top and bottom heater,heating for appointed local zone,prevent PCB to turn yellow.

9,Bottom heater up and down manually,can adjust the heating height real time.

10,Adopt ceramics infrared radiator for IR heater,heating stably and uniformly with long serve life

11,Human-machine interface has multiple operation mode and permission,welding,dewelding and mounting manually,easy operation.

12,  High resolution touch screen,which is up to 800*600 pixel

13,  Adopt joystick control for alignment system,no need setting Complicated parameters

14,Adopt Delta double ball bearing flow fan for air supply,no need external air source

15,Adopt DCCE 6 channel module for temperature control system,automatic PID adjustment

16,Monitoring heaters real time, when accident happens, relevant  sensors will send signal to PLC,which will close output channel and display fault condition. Protect itself automatically
