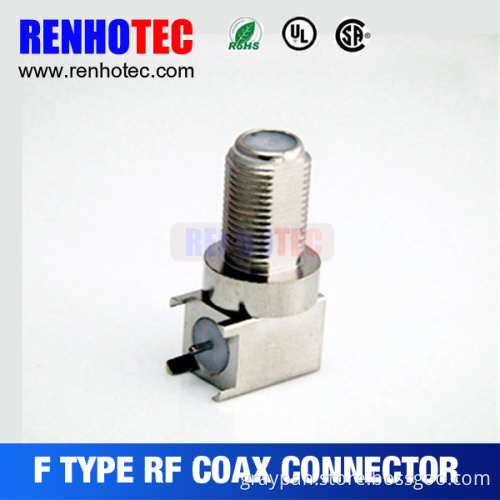

f connector 90 degree adapters for online shopping
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CIF, exw
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangzhou |
|---|---|
| Productivity: | 50000 per week |
| Supply Ability: | 50000 per week |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,exw |
| Certificate: | SGS/UL/ROHS |
| Transportation: | Land |
Hot sell F connetors for electronic:
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.F type joining devices use for 75 Ω cable assign system,especially CATV,broadcast television network,It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too.It is joined ,inserts helping jointly that its characteristic is whorl ,the price is suitable .
Major technical characteristics:
Temperature Range
-40 to +60°c
Vibration
100m/s2 (10-500Hz). 10g
Impedance
50Ω,75Ω
Frequency Range
DC to 1GHZ
Working Voltage
170V r.m.s at sea level
Withstanding Voltage
500V r.m.s at sea level
Contact Resistance
Center contact
≤10m Ω
Outer contact
≤5m Ω
Insertion Loss
≤0.24dB(6GHz)
Insulation resistance
≥1000M Ω
Center Conductor Retention Force
≥0.2N
Voltage Standing Wave Ratio
Straight
≤ 1.20/6GHz
Right angle
≤ 1.30/6GHz
Durability(mating)
≥ 500cycles
Material and plating:
Body
zinc alloy
Nickel plated
Pin contact
Annealed copper, Brass with gold, nickel, zinc, silver plated
Gold plated
Socket contact
Beryllium or tin bronze
Nickel plated
Resilient Contact
Beryllium-copper
Nickel plated
Insulator
PTFE, PE, Teflon, POM, PP
Crimp Ferrule
zinc alloy
Nickel or gold plated
O-ring Sealing
6146 silicon rubber
F Connector Application:
Antennas
Broadcast
Radios
Electronic test equipment
Serial digital and analog interface
terminals
airport
bank buildings
highways
prison
electricity
Telecommunications
railway stations
schools
factories
Non-professional radio antenna connections
f connector 90 degree adapters for online shopping
Our Quality:
Quality is the life of renhotec. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment:
We accept payment via TT (Bank transfer), PayPal, Western Union, L/C.We accept bank transfer for large orders. For small order, you'd better pay via T/T or Western union.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, FedEx, TNT and EMS.
FAQ:
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T.
Q:What's your delivery?
A:----Via Express: Generally 3-7 working days. ----Via Air Mail: Generally 1-3 working days.
Q:What about your warranty?
A:1.We can provide1 year warranty.2.With CE,ROSH,FCC certificate to ensure the quality.3.All productshave been checked and packaged in good conditionby QCbefore dispatch.
Do you have any question? Contact me now! We look forward to cooperating with you!
Dongguan Renhotec Hardware Electronics Co.,Ltd
Quality is essential to both of us,we believe that excellent quality,reasonable price ,mutual benefit will be good basis of our cooperation.If you have any requirement,please contact us.We are looking forward to cooperating with you!
