Digital Pressure Transmitter with 4-20mA output

PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER

Instruction:

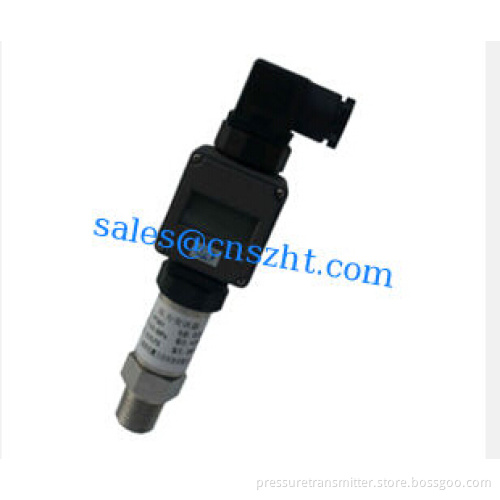

HPT-1 pressure transmitter with local display can be used for a wide variety of applications .The transmitter offers 3 1/2 LCD /LED display with the full capabilities of a high accurate 4-20mA 2-wire system design. Through strict component making, semi-finished product and all –finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility , sensitivity and diversity .

Features:

Ø 3 1/2 LED/LCD Display
Ø Compact Outline, Easy installation
Ø Strong Compatibility
Ø Adjustable Pressure Unit
Ø Local display
Applications:
Ø Hydraulic/Pneumatic Control Systems
Ø Energy and Water Management
Ø Automation equipment
Ø Process control
Ø Chemical

Performance parameters

Pressure range: -0.1~250MPa
Pressure type: Gauge pressure,Absolute pressure
Output signal: 4~20mA , 0~10V or Optional
Display mode: 3 1/2 LED or LCD display
Accuracy(%FS): 0.1 0.25 0.5
Nonlinearity(%FS): <0.1 <0.25 <0.5
Hysteresis(%FS): <0.1 <0.25 <0.5
Repeatability(%FS): <0.1 <0.25 <0.5
Zero drift(%FS/): <0.02
Full scale drift (%FS): <0.02
Stability (%FS/Year): <0.25
Operating voltage(V): 12~36V DC(Standard:24V)
Operating temperature : -20~85
Overload capacity(%): 300
Damping : Adjustable
Life span: more than 9 million times pressure cycle
Load resistance: 750
Response time(ms): 1
Media: Media compatible with 316L
Disphragm material: 316L or the ceramic diaphragm
Housing material: 1Cr18Ni9Ti
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Enclosure rating: IP65
Weight: 280g
