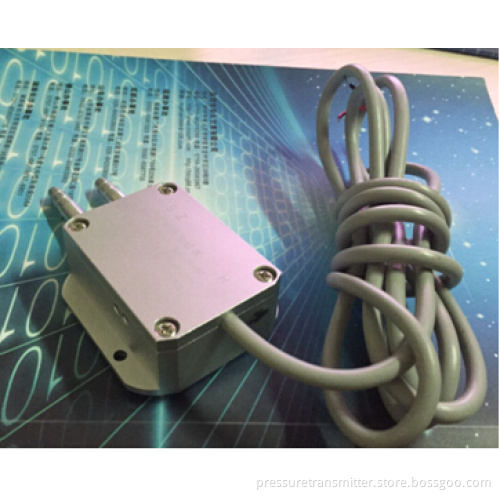

Wind Pressure Transmitter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/day |
| Supply Ability: | 1000pcs/day |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | In house Checking |
| Transportation: | Ocean,Land,Air |
PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER
Instruction:
HPT-8 differential pressure transmitters adopt piezoresistive isolated membrane silicon oil-filled as sensing element, the measured pressure on both ends of the transmitter, utilizes the semiconductor silicon piezoresistive effect to fulfill the differential pressure transformed into electrical signal. After strict testing and aging screening on components, semi-manufactured products and end products, the performance is ensured to be stable and reliable.
Features:
Ø Micro pressure of 100Pa can be measured
Ø Wind pressure and wind speed purification
Product Specification
Ø Small volume, easy to install
Ø Output signal optional
Ø Pressure connection optional
Ø Measure for differential and micro pressure
Applications:
Ø Clean room project
Ø Power plant
Ø Gas
Ø Mine ventilation
Pressure range -100kPa~100kPa
Pressure type Micro pressure or Differential pressure
Output signal 4~20mA or others
Accuracy(%FS) 0.1 0.25 0.5
Nonlinearity(%FS) 0.1 0.25 0.5
Hysteresis(%FS) 0.1 0.25 0.5
Repeatability(%FS) 0.1 0.25 0.5
Zero drift(%FS/) 0.02
Full scale drift (%FS) 0.02
Stability (%FS/Year) 0.25
Operating voltage(V) 12~36V DC(Standard:24V)
Operating temperature -20~85
Overload capacity(%) 300
Life span more than 9 million times pressure cycle
Load resistance 750
Response time(ms) 1
Media Media compatible with 316L
Diaphragm material 316L or The ceramic diaphragm
Housing material 1Cr18Ni9Ti
Pressure connection Tower structure and hose
Enclosure rating IP65
Weight 160g
