24v1a dc wall power supply class 2 adapter efficiency VI ul
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 6000000pieces/per year |
| Supply Ability: | 500000pieces/per year |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001:2008 |
| Transportation: | Ocean,Land,Air |

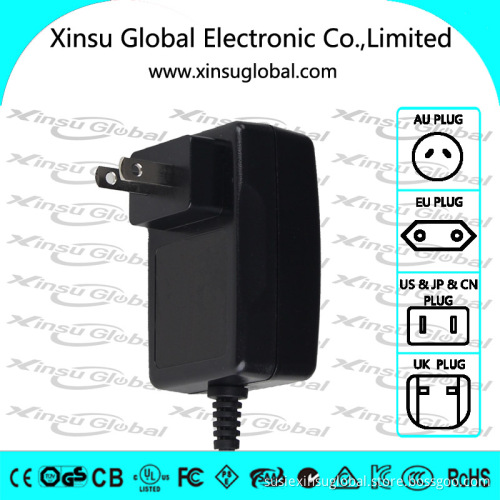

US plug 24V1A power adapter
Product Features:
Input
100-240VAC,50/60HZ
Output
24Vdc,1A
Output Connector
Customized
Efficiency
≥86.204%
No Load Power Consumption
≤0.1W
Protection Characteristic
OVP;OCP;SCP;Hiccup protection,automatic recovery
HIPOT
3KVAC,5mA,60s
MTBF
50,000HRS
Operating Temperature
-20℃~ +45℃
Storage Temperature
-30℃~ +70℃
Dimension
71mm*46mm*30.5mm
Net Weight
0.15KG/PC
Package
White Box,100pcs/CTN/15KG
MOQ
500pcs
Lead Time
Sample:5days,Mass production:15-20days
Safety Standards
UL/J/EN/IEC60950,CSAC22.2,AS/NZS60950,
Certifications
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,SAA,C-Tick
Energy Consumption
DOE:Ⅵ;Erp;Nrcan;MEPS
Environmental Protection
RoHS,REACH
Applications
Humidifier,Monitor, Router, Interchanger,Audio,
Laptop,Game Player,Display.etc
GB4943,EN55022,EN61000,EN60335
Series Params:
|
Model |
Input |
Frequence |
Output |
Plug type |
||
|
Vac |
HZ |
Vdc |
Amp |
Watt Max |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
3.6~48 |
0.3~4.0 |
24 |
Direct Plug-in |
''XS'' stands for Xinsu Global Electronic Co.,Limited
Variable [xxx" = 036-480, can be 036-480 to denote different output voltage,(3.6V~48.0V).
Variable [yyyy" = 0300-4000,can be 0300-4000 to denote different output current,(300mA~4000mA).
Class II Variable
[zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for
Japan,
Blank Or WW for worldwide etc;
