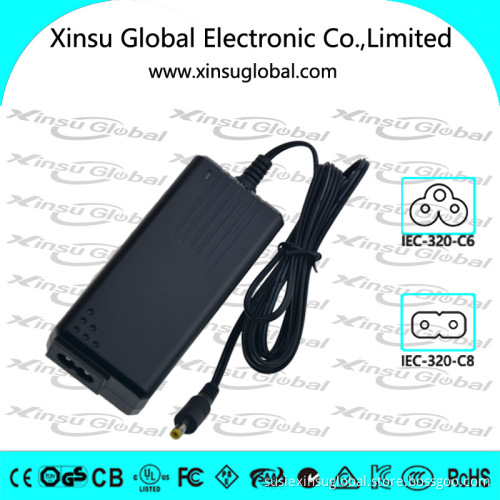

CN plug 12V3A power adapter

Product Features:

Input	100-240VAC,50/60HZ
Input Connector	IEC-320-C6, IEC-320-C8
Output	12Vdc,3A
Output Connector	Customized
Efficiency	≥87.403%
No Load Power Consumption	≤0.1W
Protection Characteristic	Polarity protection,OVP;OCP;SCP;
HIPOT	3KVAC,5mA,60s
MTBF	50,000HRS
Operating Temperature	-20℃~ +45℃
Storage Temperature	-30℃~ +70℃
Dimension	93mm*46mm*33mm
Net Weight	0.15KG/PC
Package	White Box,100pcs/CTN/15KG
MOQ	500pcs
Lead Time	Sample:5days,Mass production:15-20days
Safety Standards	UL/J/EN/IEC60950,CSAC22.2,AS/NZS60950, GB4943,EN55022,EN61000,EN60335
Certifications	UL,cUL,FCC,PSE,CCC, CE,CB,TUV/GS,SAA,C-Tick
Energy Consumption	DOE:Ⅵ;Erp;Nrcan;MEPS
Environmental Protection	RoHS , REACH
Applications	Laptop,Switching,Display,Set-top Boxes,Digital Camera,Phone,Telecommunications, Monitor, CCVT, STB, Audio, Glare flashlight .etc

Series Params:

Model	Input	Frequence	Output			Plug type
	Vac	HZ	Vdc	Amp	Watt Max
XSGxxxyyyyzz	100~240	50/60	3.6~58.8	0.3~5.0	36	Desktop

"XSG" stands for Xinsu Global Electronic Co.,Limited

Variable [xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).

Variable [yyyy" = 0300-5000,can be 0300-5000 to denote different output current,(300mA~5000mA).

Class II Variable [zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for Japan,
Blank Or WW for worldwide etc;
