Radio Frequency Wireless Motion Sensor 5.8G Radar Detector 800W IP20
Description:
- With 120~277Vac, 50/60HZ operate ,special for North America market.
- -35℃~70℃wide temperature operate, suitable for all kinds of application.
- Radio transmission, more stable function.
- Used in wireless networking of luminaries, easy installation and free of wire.
- With fixed code, very easy to step up any-to-any communication.
- By digital receiving and transmitting method, high anti-interference capability and no interference to an RF sensitive device, for example, electronic keys of cars.
- With advanced code detection technology, no code missing.
- Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create groups.

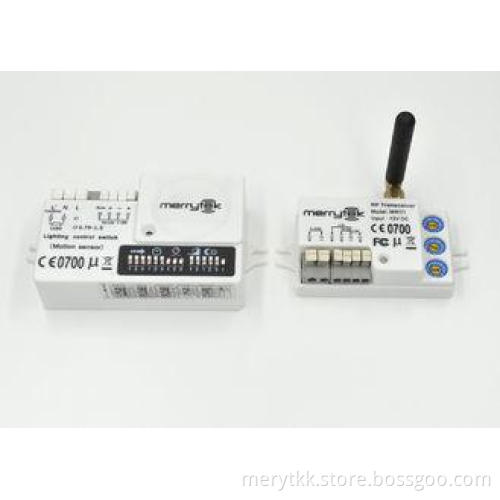

- MC022V/CP is an active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
- MW01 is an innovative and unique wireless transceiver with frequency range 433MHz. Due to use full digital receiving& transmitting and fixed address code for creation of groups, it has high reliability and stability.
- The RF module integrates advanced code check technology, significantly improved transmission reliability. Make sure exact signal transmitting and receiving, no code missing.
- Merrytek takes the lead in adopting the rotary coding switch to set up groups, very simple to achieve any-to-any communication.
Specifications:
MC022V/CP:
|
Operating voltage |
120-277Vac, 50/60Hz |
|
Rated load |
800W (inductive), 1200W(resistive) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 10m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
10%/25%/50%/75%/100% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Stand-by dimming level |
10%/20%/30%/50% |
|
Stand-by period |
5s/5min/10min/30min/1h/Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
MW01:
|
Operating voltage |
12VDC |
|
Transmitting power |
≤20mW |
|
Frequency range |
433MHz |
|
Standby-power |
<0.3W |
|
Operating principle |
Radio transmission |
|
Transmission distance |
Max:100m in the free field Max:30m inside buildings |
|
Operating temperature |
-20℃~70℃ |
|
IP rating |
IP20 |
Applications:
Stairwell, Corridor, Balcony, Pathway, Warehouse, etc
