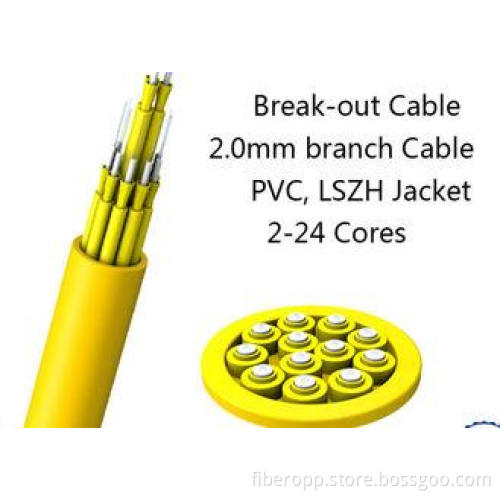

24 Fiber Multimode Fan-Out Indoor Breakout Fiber Optic Cable With High Strength
Geometrical Characteristics
|
Distribution Cable type |
2 |
4 |
6 |
8 |
10 |
12 |
24 |
|
Distribution Cable Diameter(mm) |
4.00 |
4.80 |
5.10 |
5.60 |
5.80 |
6.20 |
8.30 |
|
Distribution Cable Weight(kg/km) |
12.4 |
16.2 |
20 |
26 |
28 |
31.5 |
48 |
|
TBF Diameter(μm) |
900±50 |
||||||
Mechanical Characteristics
|
Max load(NO) |
Long term |
130 |
130 |
130 |
130 |
130 |
130 |
200 |
|
Short term |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
|
|
Bending Radius(CM) |
Dynamic |
20×D (D:Cable Diameter) |
||||||
|
Static |
10×D (D:Cable Diameter) |
|||||||
Fiber
|
Fiber type(core/cladding dimension) |
9/125,50/125,62.5/125 |
Transmission Characteristics
|
|
SMF |
50/125 |
62.5/125 |
|
|
1310/1550(nm) |
850/1300(nm) |
850/1300(nm) |
|
Max Attenuation(dB/km) |
0.45/0.30 |
3.5/1.5 |
3.5/1.5 |
|
AVG Max Attenuation(dB/km) |
0.40/0.25 |
3.0/1.0 |
3.0/1.0 |
|
Mini Bandwidth(MHZ·km) |
--- |
400/400 |
160/500 |
Technical properties
Multi-core Fan-out Cable
1. Cable diameter and bending radius small.
2. It can install freely .
The design allows each unit to be laid to different positions .High strength ,good bending performance . No filling compound ,easy to operate and splice .Options available for single-mode or multi-mode to facilitate use under special circumstances. With tight structure .light weight , small dimension and high tensile strength, it facilitates flexible installation.
Applications
It can reduce cost for indoor and in-building cabling .Recommended for installation in comparatively small space and place with small bending radius . Used as pigtail of communication equipment and cable for patch cord and connectors.
Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
