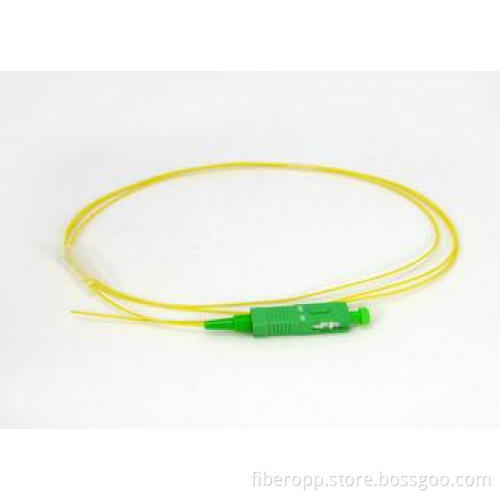

CATV LAN MAN Fiber Optic Pigtail Connector LC ST MU MPO , 50/125um 62.5/125um
Specifications:
|
Parameter |
Single Mode |
Multi Mode |
|||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
|||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
|
Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
|||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
|||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
|
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
||
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
||
|
Apex offset |
≤50um |
||||
|
Mechanical |
Exchangeability |
≤0.2dB |
|||
|
Salt Spray |
≤0.1dB |
||||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
||||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
||||
|
Repeatability |
≤ 0.1dB(1000 times) |
||||
|
Durability |
> 1000 times |
||||
|
Operating Temperature |
-40°C ~ +85°C |
||||
Features:
1. Good interchange
2. Good repeatability
3. Clean and Scratch-Free End Face
4. High Quality 100% Factory Tested
5. 3D fiber interferometer is available
6. Low insertion loss and High Return Loss.
7. Fully compliant with standards of IEC and YD-T826/1996.
8. Temperature stability: Operating temperature:-20 to +75°c.
9. High durability,more than 500 times mating.
10. individual package with detail information label.
Applications:
-
Telecommunication networks
-
Fiber optic communication networks
-
CATV, LAN, MAN, WAN, Test &Measurement
-
Optical access network
Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
