IP67 LED Driver 12V 200W LED Light Power Supply for LED Str
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

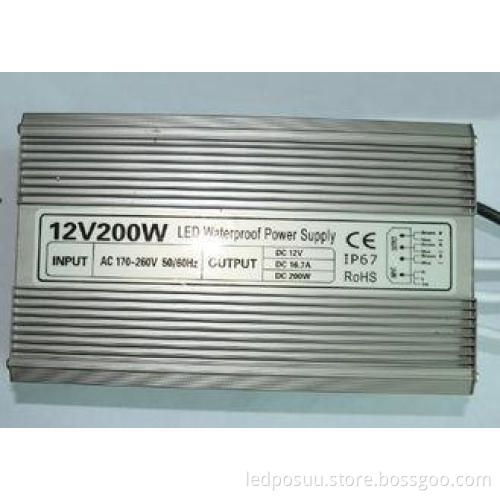

Enough Power IP67 12V 200W LED Light Power Supply for LED Strips
1. Specification
|
SJ200 - H1V12 | |
| AC input voltage range | 170 - 264VAC 47 - 63HZ | |
| Input Current | 2A / 230V | |
| AC inrush current | Cold - start current 50A / 230V | |
| Leakage current | < 3.5mA / 240VAC | |
| Over load protection | 115 - 135 % hiccupmode,auto-recovery | |
|
115-135% Cut off the output,auto-recovery | |
| Over - temp protection | ≧ 85% ° c Cut off the output, auto-recovery | |
| IP grade | IP67 | |
| Setup rise hold up time | 200ms 100ms 30ms | |
| Withstand voltage | I / P - O / P: 1.5KvAC 1 minute | |
| I / P - F / G:1.5KvAC 1 minute | ||
| O / P - FG: 0.5KvAC 1 minute | ||
| Working temperature | ~ 40° c ~ + 80° c, 20% ~ 90% RH | |
| Weight / packing / Size | 2.75kg, 5pcs / 15kg, 492*280*285mm |
2. Competitive Advantage:
1. Price. You buy from the factory directly, save cost in the middle.
2. Quality. The power supply main parts is producted by ourself, we can control the quality better.
3. Professional. Each employee through professional training.
4. technology. We have one excellent engineer design team with rich experience.
3. Description
Our factory is located in Shenzhen, China. First, we guarantee each power supply use all new material; Second, all products from production start to shipment should go through 4 times 100% testing, namely: material test / semi-finished test / finished test / test before shippment. Third, All of our drivers are 100% have been four hours of aging time.
We have SM-268 ACTIVE load, Withstand voltage test, oscilloscope to test each power supply. All of our power supply guarantee 2 years warranty and with CE & RoHS approved.
We believe that the quality is the soul of an enterprise. Therefore, we always put the quality as the first consideration.
Thanks for your visit, welcome to contact us for details.
Wish we have the honor to cooperate with you!
