350 Watt AC TO DC LED Driver 12V 29A , Rainproof Power Supp
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

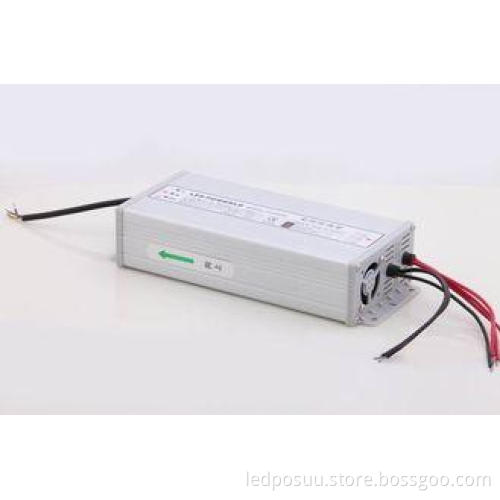

350 Watt LED Light Power Supply 29A Rainproof 12V With Short - circuit Protection
Specifications:
|
Technical Parameter |
Product Size |
290*123*68 mm |
|
Material |
Aluminum |
|
|
Brand |
Faithful |
|
|
Package |
Neural |
|
|
Waterproof Level |
IP54 |
|
|
Power |
350W |
|
|
Output voltage |
12V ± 0.5 |
|
|
Output current |
29 A |
|
|
Input voltage |
100 ~ 260V |
|
|
Input current |
2 A / 230V |
|
|
AC inrush current |
Cold start current 50A / 230V |
|
|
Leakage current |
< 1 mA / 240V AC |
|
|
Frequency |
50 ~ 60HZ |
|
|
Efficiency |
84% |
|
|
Power factor |
PF > 0.6 / 220V AC |
|
|
Setup, rise,holdup time |
200ms, 100ms, 30ms |
|
|
Withstand voltage |
I/P-OP: 1.5 KV AC 1 Minute |
|
|
I/P-FG: 1.5 KV AC 1 Minute |
||
|
O/P-FG: 0.5 KV AC 1 Minute |
||
|
Working Temp |
-25~45 degree |
|
|
Storage |
Temperature |
-40~80 degree |
|
Humidity |
10%~90% RH |
|
|
Protection |
Short circuit protection |
Auto cut off when short circuit |
|
Overload protection |
115~135% hiccup mode, auto recovery |
|
|
Over-voltage protection |
115~135% cutoff output, auto recovery |
|
|
Over-temp protection |
>=85% degree, cutoff output, auto recovery |
|
|
Standard |
CE and RoHS certificate |
|
Description:
1. 170 - 264 VAC input range
2. High efficiency, low working temperature
3. Short circuit, overload, over voltage
4. Built-in EMI filter, low ripple noise
5. Low cost, high reliability
6. Constant voltage output
7. 2 year warranty
Packing details:
|
Dimension: |
290*123*68 MM (L*W*H) |
|
Minimum of quantity: |
24PCS / 25.25 KG |
|
Carton Size: |
560*305*390 CM |
|
Weight: |
0.94 KG / PC |
