LED Display 5v High Power 200w LED Power Supply Driver AC T
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong,China |
|---|
Product Description
Product Description

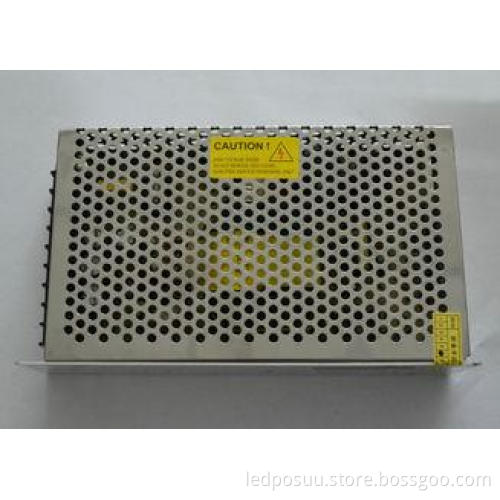

AC / DC Metal Case 2 years warranty 5v LED Power Supply 200w for LED Display
1. Quick Detail
1. High efficiency
2. 2 years warranty
3. Enough power
4. Working stability
2. Specification
| Model | PJ200 - H1V5 |
| AC input voltage range | 170 - 264 VAC 47 - 63HZ |
| AC inrush current | Cold - start current 50A / 230V |
| Leakage current | < 3.5mA / 240 VAC |
| Over load protection | 115 - 135% hiccupmode, auto-recovery |
| Over - voltage protection | 115 - 135% Cut off the output, auto-recovery |
| Over - temp protection | ≧ 85% ° c Cut off the output, auto-recovery |
| IP grade | IP 20 |
| Setup rise hold up time | 200ms 50ms 20ms |
| Withstand voltage | I / P - O / P : 1.5 KvAC 1 minute |
| I / P - FG : 1.5 KvAC 1 minute | |
| O / P - FG : 0.5KvAC 1 minute | |
| Working temperature | ~ 10 ° c ~ +60 ° c,20%~90%RH |
| Weight / packing / Size | 0.72kg, 22 pcs / 17.45 kg, 555*290*230 mm |
| Efficiency | 82% |
3. Competitive Advantage
1. All of our materials purchase from the field of the professional of LED driver suppliers. And guarantee all use new material.
2. Each power supply have been 4 hours of aging time.
3. All products have to pass strict inspection before they go out.
4. Test equipments, we have SM - 268 ACTIVE load, Withstand voltage test, Oscilloscope ……
Welcome to contact us for details, looking forward to a nice cooperation with you!
