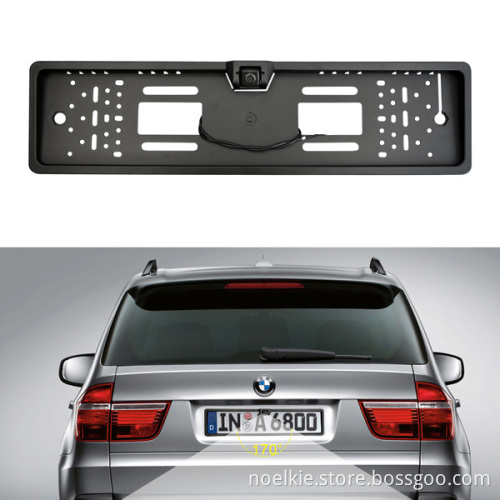

License plate backup rear view camera for European
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000sets/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/FEE/RoHs |
| Transportation: | Ocean,Air,Express |
| Chip: | PC7070 1/4 COLOR CMOS |
| Signal system: | NTSC/PAL |
| Effective pixel: | PAL: 704 * 576 pixels NTSC: 712 * 486 pixels |
| Scanning system: | 2:1 interlaces |
| Synchronous system: | synchronization |
| Definition: | 420 TVL |
| Visual Angle: | 170 degrees (can be chosen) |
| 60 Hz ac frequency: | vertical synchronization |
| Minimum intensity of illumination: | 1 Lux/F1.2 |
| Video output: | 1.0 the vp, 75 Ohm-p |
| Gamma coefficients: | 0.45 |
| AGC: | automatic |
| SNR: | more than 48 dB |
| White balance: | automatic |
| Electronic shutter: | 1/60 ~ 1/20000 seconds |
| Backlight compensation: | automatic |
| Current consumption: | maximum 120 mA |
| Power supply: | DC12V |
| Working temperature: | 20 ° C-from 70 ° C, humidity RH95 biggest % |
| Storage temperature: | -40 ° C ~ 80 ° C, humidity RH95 biggest % |
| Chip: | PC1089 1/3 COLOR CMOS |
| Signal system: | NTSC/PAL can be chosen |
| Effective pixel: | PAL: 680*520 pixels NTSC: 680 * 480 pixels |
| Scanning system: | 2:1 interlaces |
| Synchronous system: | synchronization |
| Definition: | 420 TV enough |
| Visual Angle: | 170 degrees can be chosen |
| 60 Hz ac frequency: | vertical synchronization |
| Minimum intensity of illumination: | 1 Lux/F1.2 |
| Video output: | 1.0 the vp, 75 Ohm-p |
| Gamma coefficients: | 0.45 |
| AGC: | automatic |
| SNR: | more than 48 dB |
| White balance: | automatic |
| Electronic shutter: | 1/60 ~ 1/20000 seconds |
| Backlight compensation: | automatic |
| Current consumption: | maximum 120 mA |
| Power supply: | DC12V |
| Working temperature: | 20 °C-from 70 °C, humidity RH95 biggest % |
| Storage temperature: | -40 °C ~ 80 °C, humidity RH95 biggest % |
Trade terms:
Payment:
Paypal
T/T Bank Wire
Accept 30% - 50% down payment in advance and balance pay off before delivery.
Delivery:
1. Sample within 2-5 days
2. Wholesales Orders : 3-7 days according various quantities
3. OEM 7-15 days after receiving your sample confirmation and payment.
Shipping:
UPS / DHL / EMS / HK EMS and so on express(door to door)
Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
