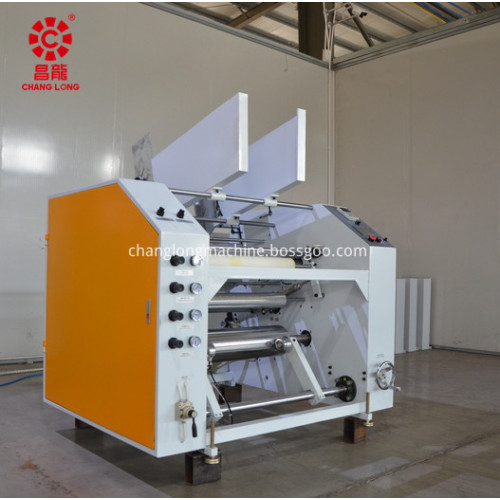

High Speed Fully Automatic Rewinding Machine Equipment

Main Technical Parameter:

Model: CL-ZDF50

Width of Finished product: 300-500mm

Line speed of mechinery:600m/min

Roll discharge style:Automatic

Diameter of parent roll(Max):400mm

Width of parent roll (MAX):500mm

Core specificatiom of parent roll:3"

Width of sub-roll(Max):500mm

Dimension of sub-roll(Max):200mm

Swidth of sub-roll:1",2",3"

Power of main motor:2.2KW

Overall Dimensions(L*W*H): 1.5*1.5*1.6m

Total Weight:750kg

Characteristic:

1. The unit is suitable for  rewinding and slitting large rolls of wrap film, cling film and other plastic films. The plastic film of the large parent roll can be re-rolled into small rolls of 2 inches or 3 inches. After the rewinding of the machine. The small film has a falt appearance, beautiful gloss and better effect. This machine can be used exclusively for plastic wrap packaging in supermarkets or hotels.
2. Fast speed ,smoother and filmer winding,more stable performance.
3. The use of fine-tuning tension winding , frquency control ,automatic paper tube ,  automatic metering, automatic cutting.
4. Low noise, labor saving, power saving.

Workshop:

Certificate:

Packing & Delivery

Exhibitions：

After-Sales Service：

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.

We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
