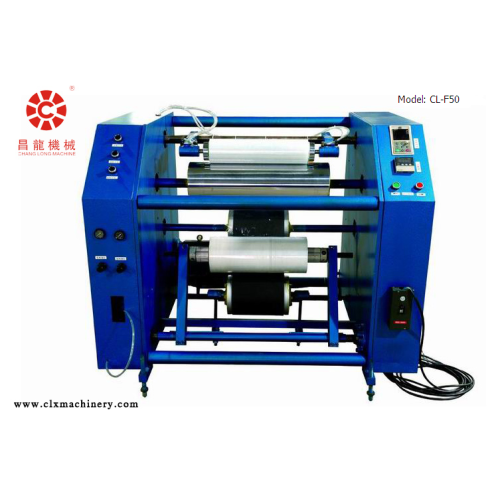

Stretch Film Rewinder

Stretch Film Rewinder

This unit rewinding slitter machine is a kind of muti-function machine integrated with rewinding, automatic out-off and meter counting, ensures the perfect slittling of rolls with consistant flawless quality and constant line speed. Our Slitting Machine is renowned for its accurate slitting at a higher speed and vibration less working.

Main Technical Parameter:

Model: CL-F50

Width of finished product: 500mm

Liner speed of machinery: 360m/min

Roll discharge style: By hand

Diameter of parent roll(max): 400mm

Width of parent roll (max): 500mm

Core specification of parent roll: 3 inch

Width of sub-roll (max):500mm

Dimensions of sub-roll (max): 300mm

Core specification of sub-roll: 1inch,2inch, 3inch

Power of main motor: 2.2KW

Overall dimensions (L*W*H) 1.4*1.0*1.1m

Total weight: 650Kg

Application

Workshop

Certificate

Exhibitions

After-sales service

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about one week training

but provide the round-trip ticket , other traveling costs should be paid by buyer.
