1500mm Plastic Embossed Film Extruder Machine
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen,China |
|---|---|
| Productivity: | 380kg/h |
| Supply Ability: | 20-30sets/m |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ISO90001:2008 |
| HS Code: | 8477800000 |
| Transportation: | Ocean |
| Port: | Shenzhen |

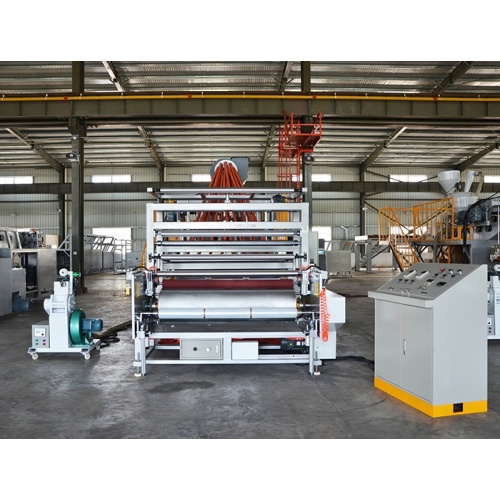

1500mm Plastic Embossed Film Extruder Machine
This Unit is based on our long time manufacturing experience and customer's actual operate, combine with Italy and Amercian high-tech to produce high plasticity, easy to operate, long life and power saving machine.This machine is fit for making stretch film, cling film and protecting film.
Main Technical Parameter:1500mm Plastic Embossed Film Extruder Machine
Model: CL-70/100/70A
Width of Die Head: 1850mm
Width of Film: 1500mm
Thickness of Film: 0.01-0.05mm
Structure of Film Layers: A/B/C or A/C/B/C/A
Liner Speed of Machinery: 200m/min
Max Extrusion Capacity: 380kg/h
Max Rewind Diameter: 400mm
Screw Diameter: 70/100/70mm
L/D Ratio of Screw: 30:1
Motor Power of Main Machine : 37/90/37kw
Total Power: 50-220kw
Overall Dimensions(L*W*H): 11.5*4.3*4.5m
Total Weight : 18.2T
Features:1500mm Plastic Embossed Film Extruder Machine
1. Matched with vacuum device, air knife cutting or soft bellows cooling system, has a different degree of automation and roller surface design approach. We can provide customers with tailor-made integrated solutions.
2. Installation of fences around the crew stairs, user-friendly design, easy to operate those machines at any time to view the situation.
3. Big size diameter cooling roller uses special bi-directional loop design, improving the cooling effect in high speed running. Ensure the cooling roller surface temperature at the same .
4. In this production line, the cooling system play a decisive role in machine high speed running. Our low noise, high torque motor drive make sure the machine operation stable. Matched with vacuum device, air knife cutting or soft bellows cooling system, has a different degree of automatic and roller surface design approach. We can provide customers with tailor-made integrated solutions.
Application:1500mm Plastic Embossed Film Extruder Machine
The machine's film can be widely used for goods packing, manual packaging, glove and so on.
Certificate
Packing
Client:
After-Sales Service
We possess a professional and young management and technical team, our service net covers all around the world, the rapid and convenient service will meet your demands.
1. 12 months warranty period , lifelong maintenance services , engineer to door maintenance.2. Senior engineer installation guide & operator train.
3. Machine instruction , ready access.
4. Technical service team , 7*24h telephone service.
Company View:
Warmly welcome to visit our factory
-
