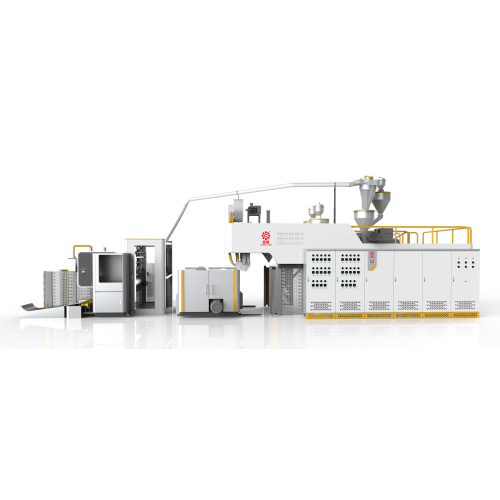

Automatic Swing Arm High-speed Stretch Film Machine

Product Description：

                                                    Model: CL-80/120/80B

Width of Die Head: 2350mm                                                      Width of Film: 2000mm

Thickness of Film: 0.01-0.05mm                                                 Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 250m/min                                          Max Extrusion Capacity:560kg/h

Max Rewind Diameter: 400mm                                                  Screw Diameter: 80/120/80mm

L/D Ratio of Screw: 30:1                                                           Motor Power of Main Machine: 45/110/45kw

Total Weight: 26.8T                                                                 Overall Dimensions(L*W*H): 14.5*6.6*5m

PE Silage Stretch Film Machine High Speed CL-80/120/80B  Features :

1、Self-developed vacuum rapid suction side automatic recovery device, ultra-quiet, not easy to block the material, not easy to break the edge, to ensure that the production is not limited by the winding speed limit, designed for the high-speed machine recycling edge stability high recovery rate.

2、The cooling roller adopts a large-diameter special flow path roller, which improves the cooling effect in high-speed production and ensures uniform temperature of the cooling roller ’s surface.

3、A fenced staircase is installed around the unit, which is user-friendly and convenient for operators to check the condition of the machine at any time.

4.The touch screen is centrally controlled,the human-machine interface is friendly,the operation is simple and intelligent.

Workshops

Packing & Shipping

After-sale service：

• Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.
• We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.
• We offer warranty on product quality and lifelong maintenance services.
