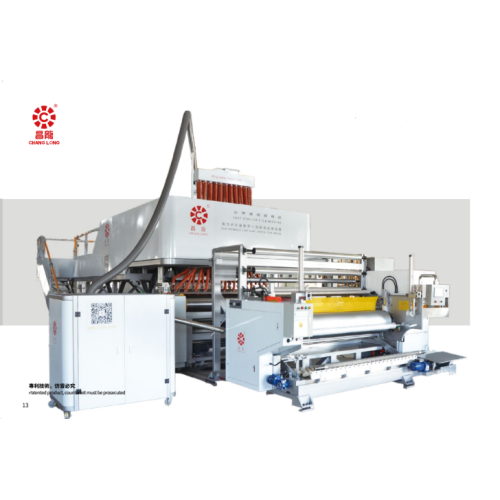

Main Technical Parameter of CL-80/100/80C ：

Width of Die Head: 2350mm

Width of Film: 2050mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 200m/min

Max Extrusion Capacity: 420kg/h

Max Rewind Diameter: 400mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 45/90/45kw

Overall Dimensions(L*W*H): 12*5.6*4.5m

Total Power: 100-250kw

Total Weight: 18.9T

Features of Plastic Melt Metering Pump ：

INCREASE THE EXTRUDER OUTPUT AND THE MACHINE LIFE

The melt pump can provide a stable pressure, which short the discharge time obviously and make the production effectively.

It has been found that after install the melt pump, the max pressure wave value is the pressure after pump. Which can make the inner pressure of the extruder decrease, the melt shear strength decrease, the temperature curve gently, and restrain the temperature rising. Also the melt pump can avoid the damage to the extruder from the high pressure.

Application：

• The Most Usage Pallet Packaging: Such as fertile, cement, chemical industrial raw material, building material etc.
• Horizontal Packaging: Metal pipe, aluminum alloy material, timber etc.
• Rotational Twist: Rolling paper, carpet etc.
• Binding: Glass container, acceptance etc.
• Break-bulk Packaging: Soybean, grain, plastic particle etc.
• Storage Packaging: Such as grass.
• Manual Packaging: It is used in wholesale, journal, printing, electronic product, foodstuff etc.
• Ring Twist Packaging: Type, wire, cable, steel silk etc.

Certificate of CL-80/100/80C：

Packing：

Exhibition：

After-Sales Service of CL-80/100/80C ：

We offer warranty on product quality and lifelong maintenance services.

We will respond to customer`s service requests and complaint in the shortest possible time and give a clear reply and solution to deal with in time.

Our professional engineering team is constitutive of excellent technical staff.

Warmly Welcome To Visit Our Factory !!!
