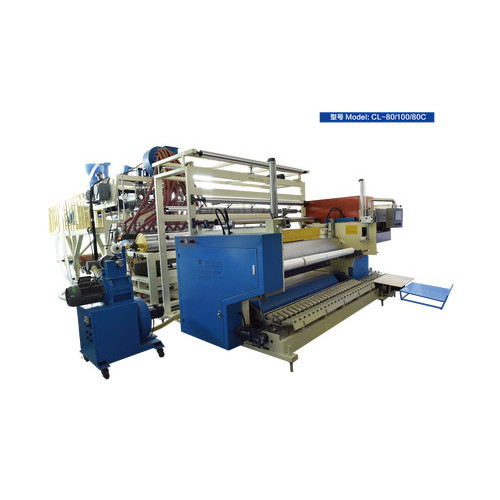

CL-80/100/80C

Main Technical Parameter of CL-80/100/80C

Plastic Packing Film Plant Wrapping Film Line

Width of Die Head: 2350mm

Width of Film: 2000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 200m/min

Max Extrusion Capacity: 420kg/h

Max Rewind Diameter: 400mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 45/90/45kw

Overall Dimensions(L*W*H): 12*5.6*4.5m

Total Power: 100-250kw

Total Weight: 17T

Features of Plastic Melt Metering Pump for Plastic Packing Film Plant Wrapping Film Line

The melt pump can provide a stable pressure, which short the discharge time obviously and make the production effectively.

INCREASE THE EXTRUDER OUTPUT AND THE MACHINE LIFE

It has been found that after install the melt pump, the max pressure wave value is the pressure after pump. Which can make the inner pressure of the extruder decrease, the melt shear strength decrease, the temperature curve gently, and restrain the temperature rising. Also the melt pump can avoid the damage to the extruder from the high pressure.

Application of CL-80/100/80C LLDPE Cast Stretch Film Unit

Certificate of CL-80/100/80C

After-Sales Service of CL-80/100/80C

We offer warranty on product quality and lifelong maintenance services.

We will respond to customer`s service requests and complaint in the shortest possible time and give a clear reply and solution to deal with in time.

Our professional engineering team is constitutive of excellent technical staff.

Warmly Welcome To Visit Our Factory
