LLDPE Pallet Wrapping Film Machine

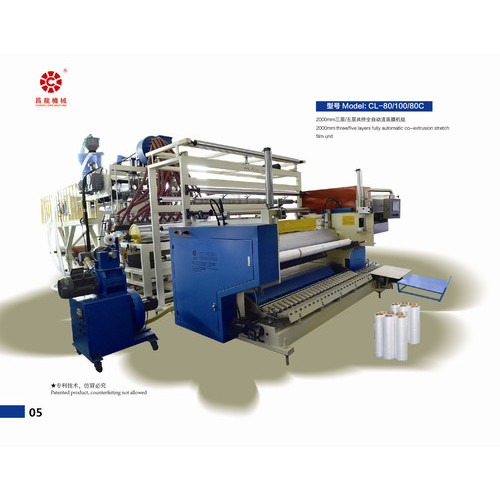

CL-80/100/80C LLDPE Pallet Wrapping Film Machine

Main Technical Parameter of CL-80/100/80C LLDPE Pallet Wrapping Film Machine

Width of Film produced by CL-80/100/80C LLDPE Pallet Wrapping Film Machine:   2000mm

Adjustable Thickness of Film made by CL-80/100/80C LLDPE Pallet Wrapping Film Machine : 0.01-0.05mm

Linear Speed of CL-80/100/80C LLDPE Pallet Wrapping Film Machiney: 200m/min

Max Extrusion Capacity of CL-80/100/80C LLDPE Pallet Packing Film Machine: 420kg/h

Max Rewind Diameter of CL-80/100/80C LLDPE Pallet Packing Film Machine: 400mm

Diameter of Each Screw:  Screw A:80mm

                                         Screw B:100mm

                                         Screw C:80mm

Overall Dimensions(L*W*H)  of LLDPE Plastic Wrapping Machine : 12 * 5.6 * 4.5 m

Total Weight of LLDPE Plastic Wrapping Machine: 17T

Features of the Melt Pump Equipped with CL-80/100/80C LLDPE Pallet Wrapping Film Machine

STABLIZE THE PRESSURE CONTROL

The melt pump equipped with CL-80/100/80C LLDPE Pallet Wrapping Film Machine can provide a stable pressure, which will shorten the discharge time obviously and make the production effectively.

INCREASE THE EXTRUDER OUTPUT AND LENGTHEN THE MACHINE LIFE

It has been found that after installing the melt pump in CL-80/100/80C LLDPE Pallet Wrapping Film Machine, the maximum pressure after melt pump decreases a lot. And it also decreases the inner pressure of the extruder which avoids harm to extruder as well as the  strength of melt shear.At the same time,the temperature curves gently, and the temperature rising  is also restrained.
