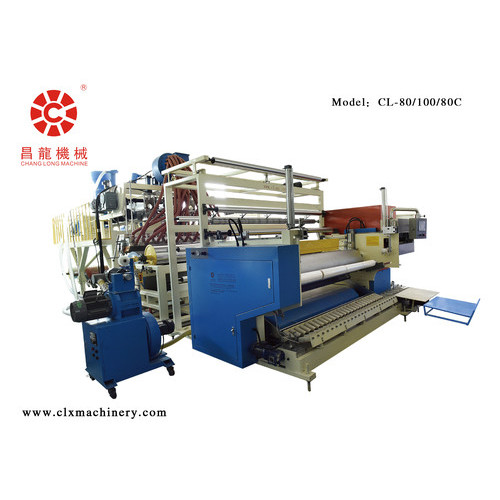

LLDPE Stretch Wrapping Film Plant CL-80/100/80C

LLDPE Stretch Wrapping Film Plant CL-80/100/80C

Main Technical Parameter of CL-80/100/80C LLDPE  Plastic Stretch Wrapping Film Line

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 200m/min

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 45/90/45kw

Width of Die Head: 2350mm

Width of Film: 2000mm

Max Extrusion Capacity: 420kg/h

Max Rewind Diameter: 400mm

Screw Diameter:  A:80mm

                                 B:100mm

                                 C:80mm

Total Power: 100-250kw

Overall Dimensions(L*W*H): 12*5.6*4.5m

Total Weight: 17T

Features of Plastic Melt Metering Pump for CL-80/100/80C LLDPE  Plastic Stretch Wrapping Fim Unit

1.Cooling roller adopt big diameter design and special double deck runner,greatly improving the cooling effect in high speed producing process and ensure the same temperature of cooling roll surface.

2. The whole line adopts melt metering pump with precision sensor pressure system.

Strictly control plastic extruder output, ensuring to make finished film stable and maintain a uniformity.

3. The whole line comes true fully automatic production, based on traditional automatic cut film,

increase high output, high linear speed and save labour cost.

Application of CL-80/100/80C LLDPE  Plastic Stretch Wrapping Film Plant

The stretch film making by this machine is used for packaging goods like pictures.

Certificate of CL-80/100/80C LLDPE  Plastic Stretch Wrapping Film Line

Packing of CL-80/100/80C LLDPE Stretch Wrapping Fim Making Unit

After-Sales Service of CL-80/100/80C LLDPE  Plastic Stretch Wrapping Film Plant

Our professional engineering team is constitutive of excellent technical staff.

We  provide perfect after-sales service in time, give a good technical training to ensure stable running of machine.

We will respond to customer`s service requests and complaint in the shortest possible time and give a clear reply and solution to deal with in time.

At the same time,we sum up customer`s complaint and proposal in order to improve ourselves and better meet customers requirement. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
