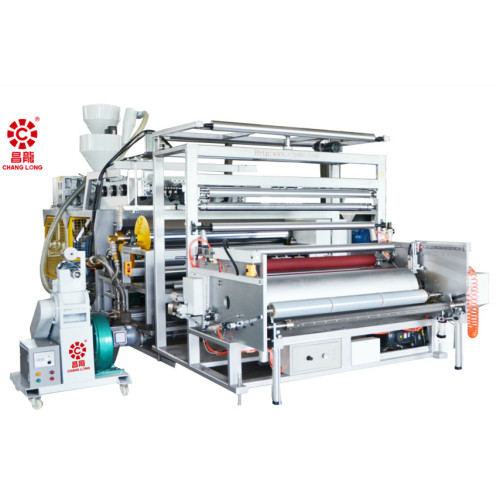

1500mm Automatic Co-Extrusion Casting Film Machine

PE Co Extruded Film Machinery Wrapping Film Machine CL-65/90A

Machine specification



Model:	CL-65/90A
Screw Diameter:	65/90mm
L/D Ratio of screw:	30:1
Width of die head:	1850mm
Thickness of film:	0.01-0.05mm
Width of film:	1500mm
Max rewind diameter:	400mm
Membrane structure:	A/B/C or A/B/A
Line speed of machinery:	135m/min
Max extrusion capacity:	200kg/h
Motor power of main machine:	22/45KW
Overall dimensions(L*W*H):	8*3.5*3.9m
Total weight:	10.2T

Features :

1.The alloy screw adopts special mixing funcation and high plasticizing capacity to ensure good plasticization,uniform color and greatly improved extrusion.

2.The diameter of the cooling roller is increased,and the internal double-loop design and built-in spiral flow path uniform temperature of the roller surface.

3.The winding frame adopts the middle aisle platform to facilitate the monitoring of the thickness and adjustment of the film on the line.The cutting knife can be replaced, and the double-sided non-stop cutting knife can be realized, which is safe and easy to operate.

Workshop

1.High Precision CNC Machine Tools

2.CNC Machining Center

3.High Precision Machining Machine

Application

The film can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on.

Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

Certificate

The company is a national high-tech enterprises

This product has passed the CE certification and ISO certification

Exhibition :

Service

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about two weeks training

and provide the round-trip ticket but other traveling costs should be paid by buyer.
