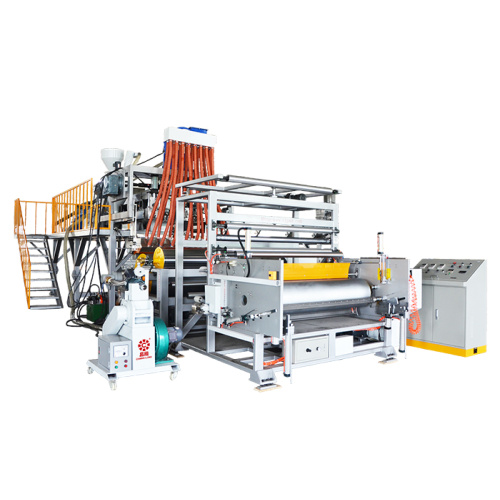

CL-70/100/70A 1.5M Updated Stretch Film Machine :

Designed for three or five layers stretch film,cling film,and protective film, this machine CL-70/100/70A Updated Stretch Film Machine could be easily operated as it is combined with Italy and Amercian technology and so that could produce stretch film with high plasticity.This CL-70/100/70A Updated Plastic Stretch Film Machine is also designed based on our long time manufacturing experience and customer's actual feedback.

Main Technical Parameter :

Model: CL-70/100/70A                                                       Liner Speed : 200m/min

Max Extrusion Capacity : 380kg/h                                       Max Rewind Diameter : 400mm

L/D Ratio of Screw: 30:1                                                    Motor Power : 37/90/37kw

Screw Diameter : 70/100/70mm                                         Width of Die Head : 1850mm

Total Power: 50-220kw                                                     Overall Dimensions(L*W*H) : 11.5*4.3*4.5m

Total Weight : 18.2T                                                         Width of Film : 1500mm

Thickness of Film : 0.01-0.05mm                                       Structure of Film Layers: A/B/C or A/C/B/C/A

Features :

1. Melt metering pump unit in this CL-70/100/70A Updated Stretch Film Machine uses sensor technology,precise control uint extrusion pressure to achieve a linar extrusion ,improve film properties.
2. Vacuum devices in this CL-70/100/70A PUpdated Stretch Film Machine makes the production of film to better fit the confluemce extended cooling reel,and can achieve better coolng effect and improve film performane.
3. Installation of fence of this CL-70/100/70A Updated Stretch Film Machine around the screw stairs makes it user friendly and it's easy to operate those machines at any time to view the situation.
4. Touch screen centralized control,interpersoal friendly interface makes the CL-70/100/70A Updated Stretch Film Machinesimple to operate and more intelligent.
5. The products produced by the  CL-70/100/70A Updated Stretch Film Machine enjoys uniform thickness,good tensile strength,strong puncture resistencee especially meet the high-end and high quality requirements.
6. The machine CL-70/100/70A Updated Stretch Film Machine is equipped with casting cooling section with large diameter double-loop cooling system to make the reel surface temperature uniformity,and to improve the cooling effect.

Application :

The film produced by CL-70/100/70A PE Plastic Film Line can be widely used for goods packing, manual packaging and so on.

Certificate :

After-Sales Service :

We possess a professional and experienced technical team to enable our service network cover all around the world.The rapid and convenient service will meet your demands.
1. 12 months warranty period , lifelong maintenance services , engineer to door maintenance.
2. Senior engineer installation guide & operator train.
3. Machine instruction , ready access.
4. Technical service team , 7*24h telephone service.

Warmly Welcome To Visit Our Factory
