Polyethylene Stretch Film Machinery

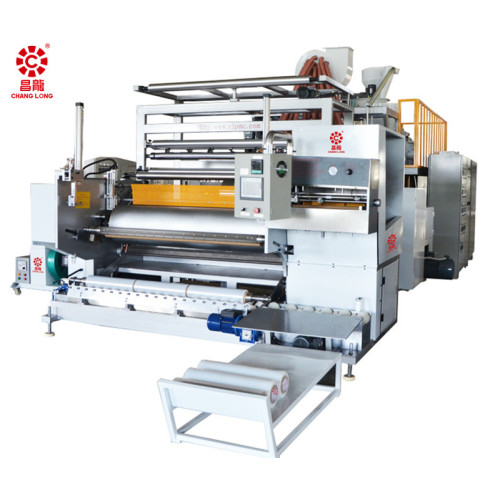

CL-70/100/70C LLDPE Stretch Film Machinery

This machine CL-70/100/70C LLDPE Stretch Film Machinery is designed for three or five layers stretch film , cling film and protective film based on our long-time manufacturing experience and customer's actual feedback.It is combined with Italy and Amercian high-tech to produce high-end products with high plasticity and it is very easy to operate.

Technical Specification of CL-70/100/70C LLDPE Stretch Film Machinery

Model of LLDPE Stretch Film Machinery: CL-70/100/70C

Screw Diameter: A  Screw 70mm

                        B  Screw 100mm

                        C  Screw 70mm

Available Thickness of Film Produced by CL-70/100/70C LLDPE Stretch Film Machinery: 0.01-0.05mm

Width of T-die equipped with CL-70/100/70C LLDPE Stretch Film Machinery: 1850mm

Linear Speed of Auxiliary Machinery: 150m/min

Max Rewind Diameter or Product Roll: 400mm

Width of Product Film Produced by CL-70/100/70C LLDPE Stretch Film Machinery: 1500mm

Film Structure of Stretch Film Line on Sale: A/B/C or A/C/B/C/A

Total Max Extrusion Capacity of CL-70/100/70C LLDPE Stretch Film Machinery: 380kg/h

Total Weight of CL-70/100/70C LLDPE Stretch Film Machinery: 17T

Motor Power of Main Machinery: 37/90/37kw

Overall Dimensions(L*W*H) of CL-70/100/70C LLDPE Stretch Film Machinery:12*5.0*4.5m

L/D Ratio of Screw: 30:1

Features of CL-70/100/70C LLDPE Stretch Film Machinery

1.The installation of fence around the screw stairs is designed  friendly for user which ensures the safety during operation.

2.Simens PLC and touch screen centralizedly control the whole machine which makes it more easier and more intelligent to operate .

3.The vacuum device helps  improve the coolng effect of the first cooling roller and then improve the quality of product film.

4.Large shaft diameter within double-loop cooling system ensures a stable  temperature on the surface of cooling roller which greatly improves the cooling effect.

5.Plat thickness,good tensile strength as well as strong puncture resistencee are the advantages of our product film which meets the high quality requirements.

6.Melt Pump with advanced technology is used in the screw of extruder which helps a lot with the quality of product film.

Application of the Stretch Film Produced by CL-70/100/70C LLDPE Stretch Film Machinery

Product film produced by CL-70/100/70C LLDPE Stretch Film Machinery could be widely used in manual and mechnical packaging and so on.

Packing and shipping of the Stretch Film Produced by CL-70/100/70C LLDPE Stretch Film Machinery

Production base of the Stretch Film Produced by CL-70/100/70C LLDPE Stretch Film Machinery

After-Sales Service of CL-70/100/70C LLDPE Stretch Film Machinery

Professional and experienced technical team provides service covering all around the world to meet your requirement rapidly.

2. Senior engineer installation guide & operator trainning.

3. Machine instruction provided.

4. Technical service team , 7*24h telephone service.

Welcome to Visit Our Factory!

Brand ChangLong Machine!
