Conventional Cast Hand Wrap Stretch Film Equiment

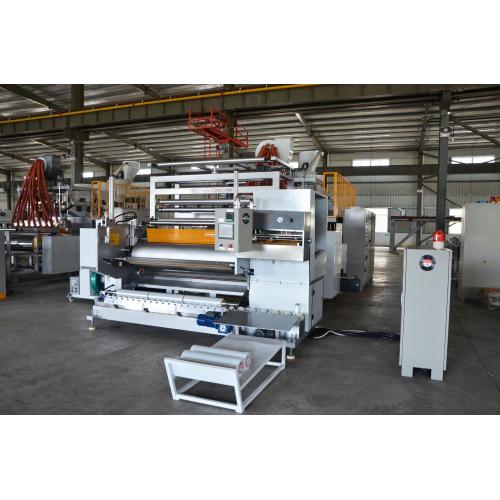

Conventional Cast Hand Wrap Stretch Film Equiment CL-65/90/65A

Product Description :

1. Thickness adjustment scope:10µm-50µm;

2. Screw Diameter : 65/90/65mm

3. Width of effective film:1 500mm(max) or 3*500mm ;

4. Structure of film layers:A/B/C or A/C/B/C/A Co-extruded;

5. The fit material:LLDPE;

6. Extrusion capacity(max):250kg/h.

7. Line Speed: 150m/min

8. Overall Dimensions(L*W*H) : 9.6*4.6*4.4m

9. Total Weight : 16T

Conventional Cast Hand Wrap Stretch Film Equiment Features :

1. The bi-directional loop design and helix runner inside cooling steel roller is adopted to ensure even temperature of roller surface.

2. The winding system apply air knife online device, which can automatic cut different thickness film.

Conventional Cast Hand Wrap Stretch Film Equiment Workshop

Application

The film can be widely used in wrapping of pallet packaging,storage packaging, manual packaging and so on.

Conventional Cast Hand Wrap Stretch Film Equiment Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

Conventional Cast Hand Wrap Stretch Film Equiment CERTIFICATE :

Conventional Cast Hand Wrap Stretch Film Equiment Service team

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting.
