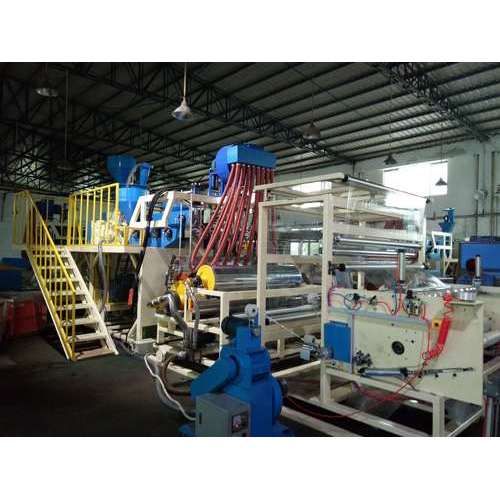

CL-65/90/65A Three Screws Stretch Film Machine

Three Layer LLDPE Co-extrusion Stretch Film Machinery CL-65/90/65A

Product Description :

1.Thickness adjustment scope:10µm-50µm;

2.Screw Diameter : 65/90/65mm

3.Width of effective film:1 500mm(max) or 3*500mm ;

4.Structure of film layers:A/B/C or A/C/B/C/A Co-extruded;

5.The fit material:LLDPE;

6.Extrusion capacity(max):250kg/h.

7.Line Speed: 150m/min

8.Overall Dimensions(L*W*H) : 9.6*4.6*4.4m

9.Total Weight : 16T

Features

1. Screws adopt alloy specially mixed and refined with high plasticity design for qualified function .

2. The winding system apply air knife online device, which can automatic cut different thickness film.

Workshop

Application

The film can be widely used in pallet packaging,storage packaging, manual packaging and so on.

Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

CERTIFICATE :

Service team

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about two weeks training

and provide the round-trip ticket but other traveling costs should be paid by buyer.
