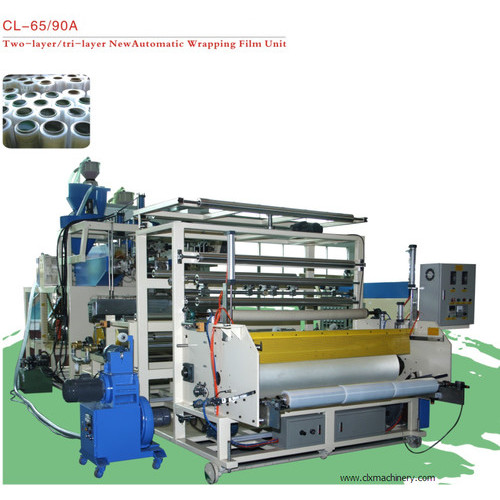

CL-65/90A LLDPE Stretch Film Machine

1500mm Two/Three Layers Co-Extrusion PE Strech Film Extrusion Machine  CL-65/90A

Product Description :

1.Thickness adjustment scope:10µm-50µm

2.Screw Diameter : 65/90mm

3.Width of effective film:1 500mm(max) or 3*500mm ;

4.Structure of film layers:A/B/C or A/C/B/C/A Co-extruded;

5.The fit material:LLDPE;

6.Extrusion capacity(max):200kg/h.

7.Line Speed: 150m/min

8.Overall Dimensions(L*W*H) : 8*3.5*3.9m

9.Total Weight : 10.2T

Features :

1.The alloy screw adopts special mixing refining function and high plasticity design,the unit consists of import static state mixer to ensure good plasticity,The output is high quality and even.

2.The bi-directional lopp design and helix runner inside cooling steel roller is adopted to ensure even temperature of roller surface.

3.Winding roller parts---aisle-platform,it is convenient and easy to adjust thickness and quickly change width of film,also can not stop machine to cut film.

Available configuration:Touch screen control electric system Manipulator equipment to puts raw material.

Workshop

Application

The film can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on.

Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

Certificate

Exhibition :

Service

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about two weeks training

and provide the round-trip ticket but other traveling costs should be paid by buyer.
